• Model: ES-2X42D

• Name: The tactical Close Combat 2x42 Red / Green Dot Sight Rifle Scope

•

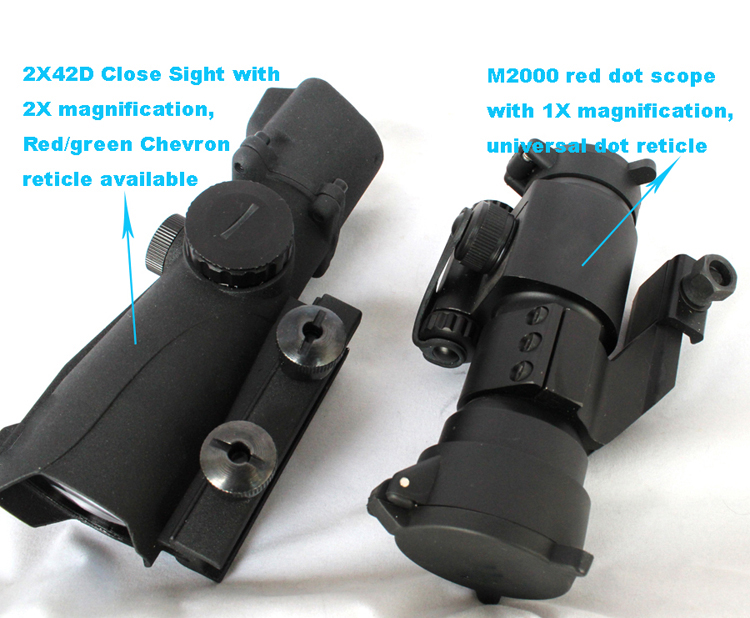

  Normal dot or unitque Chevron reticle are available, as above reticle displays.


  Specifications

  Tactical 2X42D Green and Red Dot Sight Rilfe Scope
  1. 2X magnification
  2. Chevron reticle available
  3. Full Metal with polish finish


  Detailed description and introduction of this unique sight design:

•

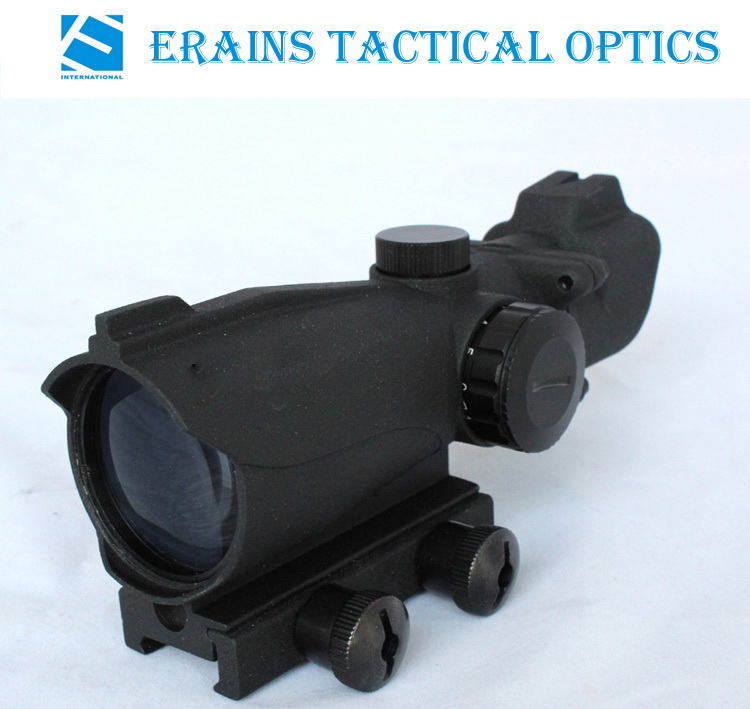

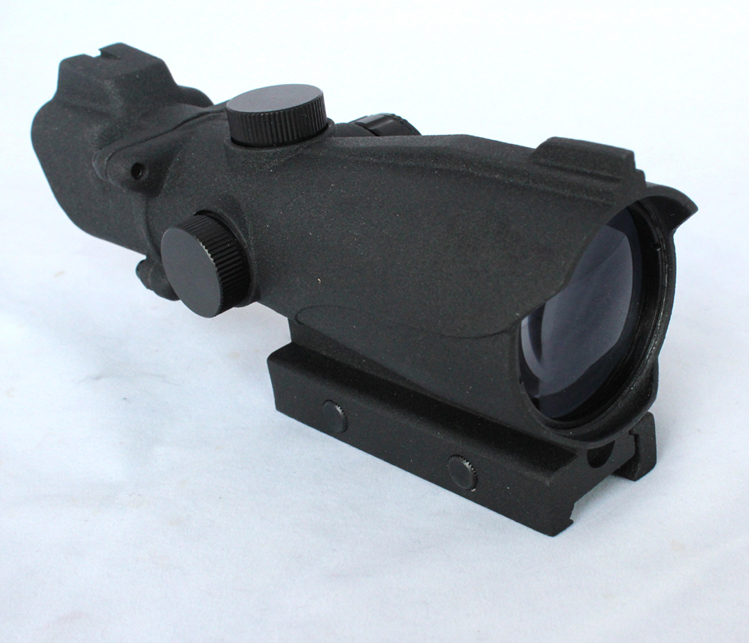

• Model Name: ES-2X42D Tactical Red and Green Dot Sight Rifle scope
• Magnification: 2x
• Objective Lens Dia: 42mm Wide field window, fine for rapid shoot and moving target
• Dimensions : 86mm 163x62x74mm
• Mount type: weaver/picatinny
• Weight (net): 15oz or 425G
• Eye Relief: Free, unlimited
• Field of View (M@ 100M): 13
• Optics Coating: Multi Coated
• Lens coating: AR silver
• Reticle color: Both red green illumination
• Reticle brightness settings: 0-5
• Reticle type: Normal dot or unitque Chevron reticle is available.

• Click value (1 click=MOA) : 1

• Windage & Elevation(MOA) : 60

• Low power consumption for longer battery life

• 25 - 300hrs
• Operating temperature: 0-120ºF

• Shock proof (1000g) and Fog Proof

• High quality aluminum alloy in durable black matte finish with Rosting Oxidized

• Feature 1 M.O.A (100 Yards) windage and elevation with for greater precision

• Install on 21mm picatinny and weaver rail

• Erains TAC Optics and made in China are under our strict quality control

INSTALLATION

It is recommended to have the red dot sight riflescope mounted by a professional gunsmith. However, if attempting to mount the sight without professional assistance please read and strictly adhere to the following directions.

WARNING! Never attempt to mount the sight on a loaded firearm.

1. The Red Dot Sight Riflescope comes with a weaver/picatinny mount

2. Unload the weapon. Remove the bolt/firing pin to ensure the weapon is incapable of firing.

3. Install the red dot sight onto a weaver or picatinny base. Tighten the mounting screw (2) between 45-65 inch pounds of torque.

4. Ensure the red dot sight provides the desired eye relief by moving the weapon into the shooting position.

5. Check that the red dot sight is evenly mounted, and boresight the sight.

BORESIGHTING THE RED DOT SIGHT RIFLESCOPE

Boresighting and test firing should be performed safely on a firing range. Laser boresights are a quick and accurate method to sighting in scopes .Listed below is the traditional method of boresighting. 1. When mounting the sight on a bolt action rifle, remove the bolt; or when mounting to a semi automatic rifle, disassemble the rifle until there is a straight line of sight through the bore. 2. Use a target at least 20yds to 50yds away when sighting in. Look through the bore of the weapon and locate the bullseye of the target. 3. Sight in the target through the bore and then make windage and elevation adjustments to the sight until the reticle is centered. To verify the scope is sighted in, fire a three-shot test group. 4. If you are still off center, make the necessary adjustments and again fire a three-shot test group.

OPERATING THE WINDAGE AND ELEVATION ADJUSTMENTS

To make windage and elevation adjustments:

1. Remove the caps covering the windage and elevation adjustments.

2. Using a flathead screwdriver or coin make the necessary adjustments. The windage and elevation adjustments are 1 MOA, meaning 1 click moves the point of impact 1in. at 100 yds. Adjustments can be both felt and heard.

3. Once adjustments are complete, screw the caps back on.

MAINTENANCE

Proper maintenance of the red dot sight riflescope is recommended to ensure longevity. It is recommended that when the dot sight becomes dirty, it is wiped down with a dry or slightly damp cloth. Blow dirt and debris off all optics and then clean lenses with a lens cleaning cloth. No further maintenance is required.

WARNING

Always follow your firearm’s instruction manual and warnings. Follow safe firearm practice. WARNING! Never attempt to mount the sight on a loaded firearm. DO NOT disassemble the sight for any reason as this will void the warranty and could be hazardous. Any internal work should be handled by the manufacturer. Any tampering with the purge screw will void the warranty.

TROUBLESHOOTING

Never ship back a red dot sight riflescope without getting the proper authorization beforehand. Doing so could result in losing the red dot sight due to a multitude of reasons, i.e. sending it to the wrong address and other problems associated with unexpected packages.

1. Check the firearms’ mount that is securely attached. Also, verify the red dot is mounted securely to the rifle. If there is any shifting, retighten the mounting system according to the mounting instructions but do not over tighten.

2. When test firing a rifle to check the point of impact relative to windage and elevation adjustments, firing from a shooting rest will help eliminate shifting during firing. 3. Be sure to use factory-loaded ammunition of the same bullet type, weight, and preferably, lot number when sighting in the red dot sight.

INSTALLING THE BATTERY

The Erains Tactical Close Combat 2x42 Red Dot Sight Riflescope is powered by one CR2032. Should the reticle grow dim or not illuminate, the battery needs to be replaced. To install a new battery:

1. Unscrew the battery cap (4) counter clockwise and remove the battery.

2. Insert new battery with the positive (+) side facing up.

3. Screw the battery cap clockwise. Do not overtighten.

OPERATING THE ON/OFF SWITCH

To activate the Red Dot Sight Riflescope:

1. Locate the on/off switch (5) and Rotate the adjustment switch to the desired illumination setting.

2. After use, turn the switch to the off position marked by “0”.
