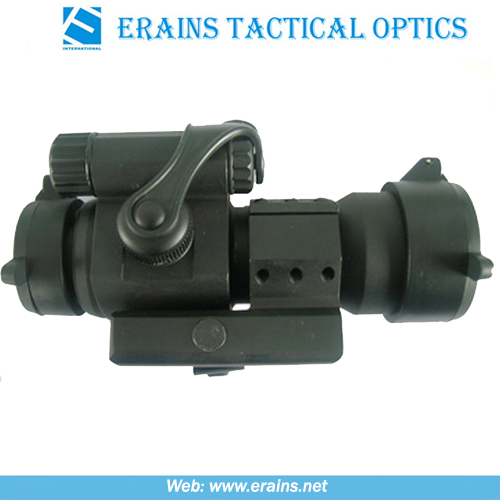

Model: ES-M2000

Name: Brand new perfect illuminated Red DOT, Red DOT Sight, Red DOT Scope or DOT sight, we can offer your requested logo for OEM orders.

OPTICAL DATA
System Parallax Free, Reflex, Collimator System
Magnification: No magnification (1X)
Eye relief Unlimited, No centering required
Reticle, size Red DOT, diameter 8 MOA*

ELECTRONIC DATA
Battery Type: 2X1.5 Volt (AG13)
Battery Life: 50-100 hours average.
Switch, DOT brightness 6 positions, of which 5 Extra Bright

MECHANICAL DATA
Material housing: Extruded high strength aluminium
Surface finish: Hard anodized, matte, Graphite Gray
Material lens covers Thermoplastic Elastomer, black non-glare
Adjustment 1 click = 10 mm at 80 meters = 13 mm at 100 meters

DIMENSIONS
Length: 130 mm (5.1")
Width/height: 45 mm (1.8")
Ring width Max: 30 mm (1.2")
Weight: 330 grams (11.64 oz)

ENVIRONMENTAL DATA
Temperature Range: -45oC to +70oC (-50oF to +160oF)
Water resistance Submersible to: 25 m (80ft) water depth
*MOA (Minute Of Angle) 1 MOA = 30 mm at 100 meters.
