Before You place the order, please kindly check below detailed information to understand better

with the W series range find models and the letters meaning.

Product Purposes and Key Features

1.The product has a 6X optical viewing system It’s easy for targeting, and it has four basic functions of range, speed,

(Angle, Height) measurements.
2.In addition, the product is with graceful appearance design which meets the design concept of human engineering.
3.The product is designed to satisfied waterproof class of Ip5 ( Not for use under water).
4.The product comes with automatic shutdown function (8 seconds if unattended).
5. An addition of Flag Locking Mode, it can separate the target flag from the background, lock and measure the target

automatically. The function is useful when golfing.

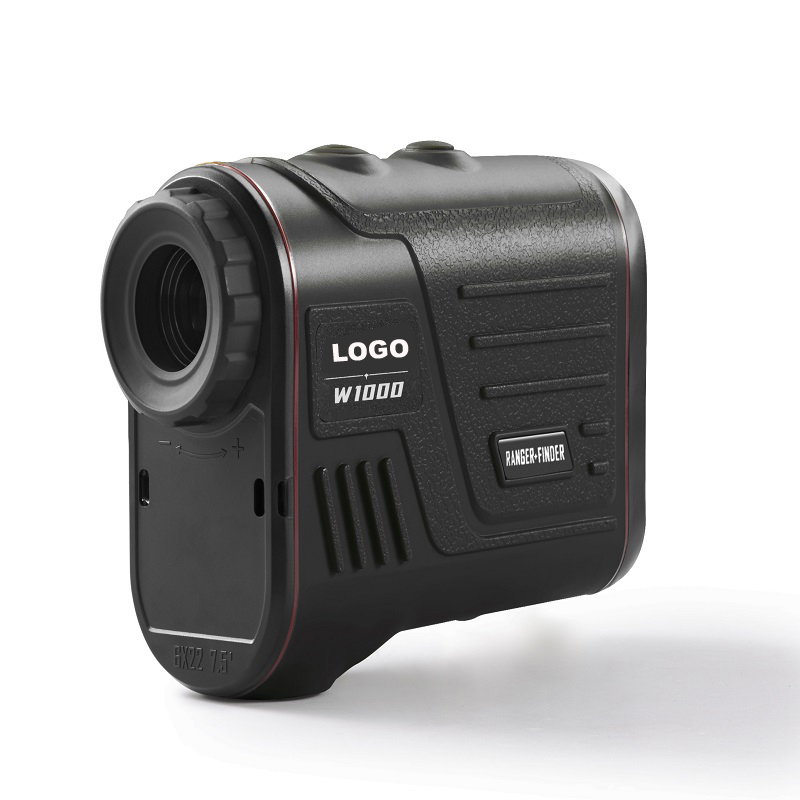

The W series Laser ranger finder is suitable for measuring high reflectivity objects (such as highway signs), moderate

reflectivity (such as building’s wall) and low reflectivity objects (such as trees, golf flag).

The range of by W series laser ranger finder is defined as the conditions below:
1. The reflectivity rate is moderate, Such as building’s wall.
2. The surface of reflector is vertical with the laser emission direction.
3. The day is sunny and measuring direction can’t be face to the sunlight.
4. The area of reflector is not less than 2mx2m.

List of Ranging Telescope Accessories

Name Quantity               Ranging Telescope

User Manual                    1
Lanyard                            1
Lens Wiping Cloth          1
Carry case                        1

Cr2 Lithium Battery        Optional

Parts of Device

1. POWER button
2. MODE button
3. Nameplate (see the right picture)
4. Object lens / laser emission aperture
5. Laser receiving aperture
6. Eyepiece knob adjustment indication
7. Lanyard hole
8. Battery lid
9. Tripod retaining nut

Package kits and Packing:

Individual Canvas bag, Color Box, Strong Export Carton
Qty/M Ctn: Ctn: 34 units
Individual Color box size:106*66*140mm
Master Carton size: 280*380*520mm
Package: Lens Cloth, CR123A Battery, Poly Bag, User manual book, Canvas Bag all in a Color box, then in Master Carton

Unit and Measuring Mode Switching

Select the display unit (Factory default unit: Meter)
1.Confirm the LCD display as normal.
2.Press the MODE button and keep over 2 seconds,then unit switch can be activated.

3.The unit can be switched and retained after the mode button released.

Select the measuring mode (Factory default: Ranging mode)
1.Confirm the LCD display as normal.
2.Keep pressing the 'MODE'botton then can switch the fuction model.
