2021 Latest Designed Low Cost Perfect 2K Ultra HD 1080P Hunting Max 250m Range IR Illuminator Included Handheld Night Vision Telescope Camping Day & Night Digital Monocular
Main Features:
1. Military grade Multi-coated all-glass optics.
2. Smart and compact Digital monocular with full Weather resistant and Waterproof of IP66, Shockproof and Dust / Fog proof IP66.
3. Plastic and Aluminium Alloy Housing with special Hard Anodized Treatment.
4. Strong Competitive cost comparing to other same level devices.
5. Ultra 2K HD 1080P Sensor.
6. Attached with invisible IR illuminator.
7. TFCard: Support max128GB, Class4 and above
8. Various optional Video Recording Resolution 1080p @ 200 fps; 1080p @ 120 fps; 1080p @ 60 fps; 1080p @ 30 fps
9. Full weather resistant and battery life up to more than 3~4 hours after fully charged.
10. Smart design with lightweighted of 345 only
11. WiFi ((Streaming, Gallery)& Bluetooth Controls by iOS & Android; 3D Gyroscope, Electronic Compass, Smooth Zoom, USB, type C and Night Vision Function all incuded.
12. Free Warrants for 1 year from the defects in material, basic function and workmanship after order.
13. Detecting range up to 150m as standard, and it can boost up to 250 meters with additional C81 IR illuminator supplement.

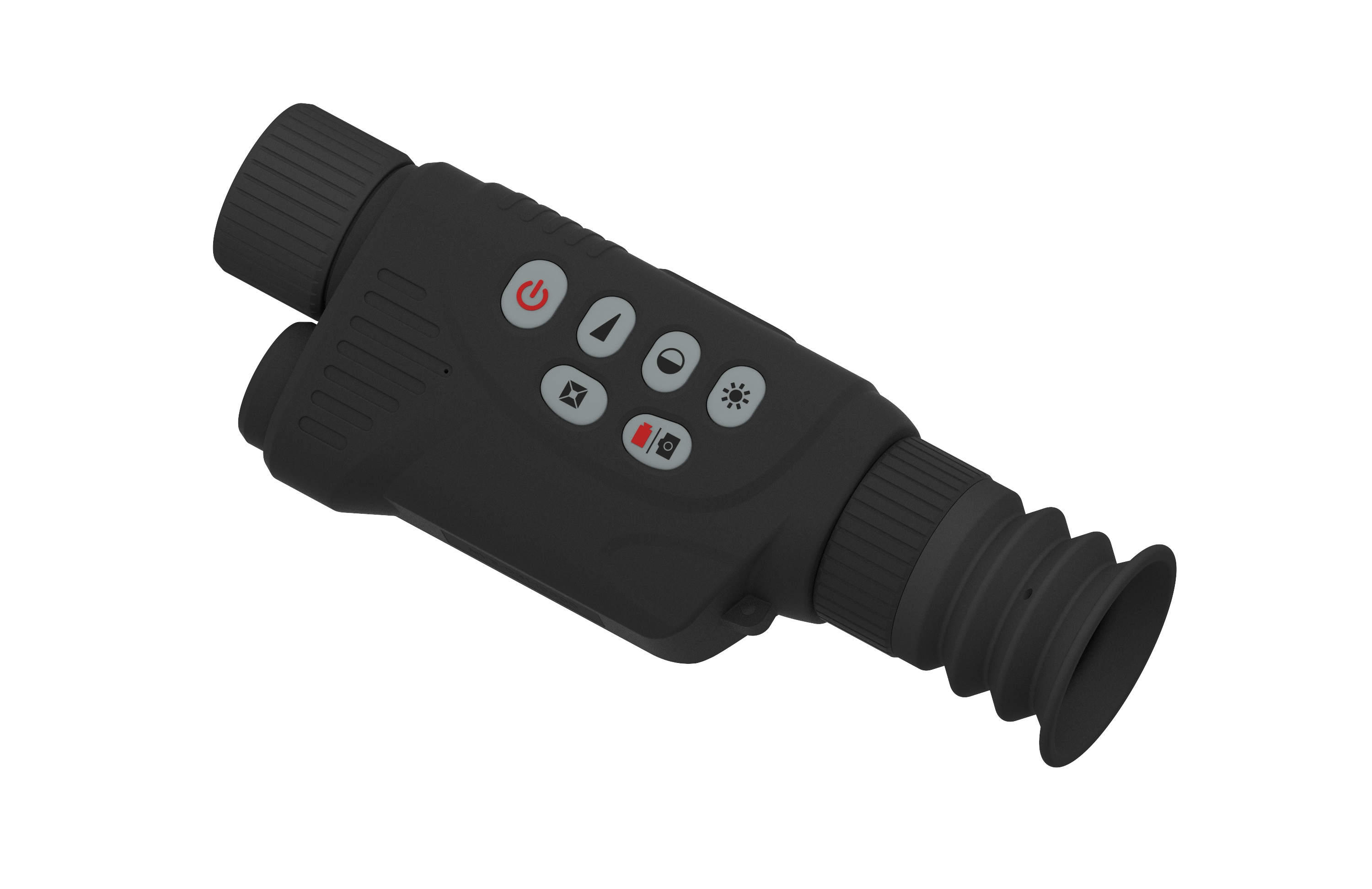

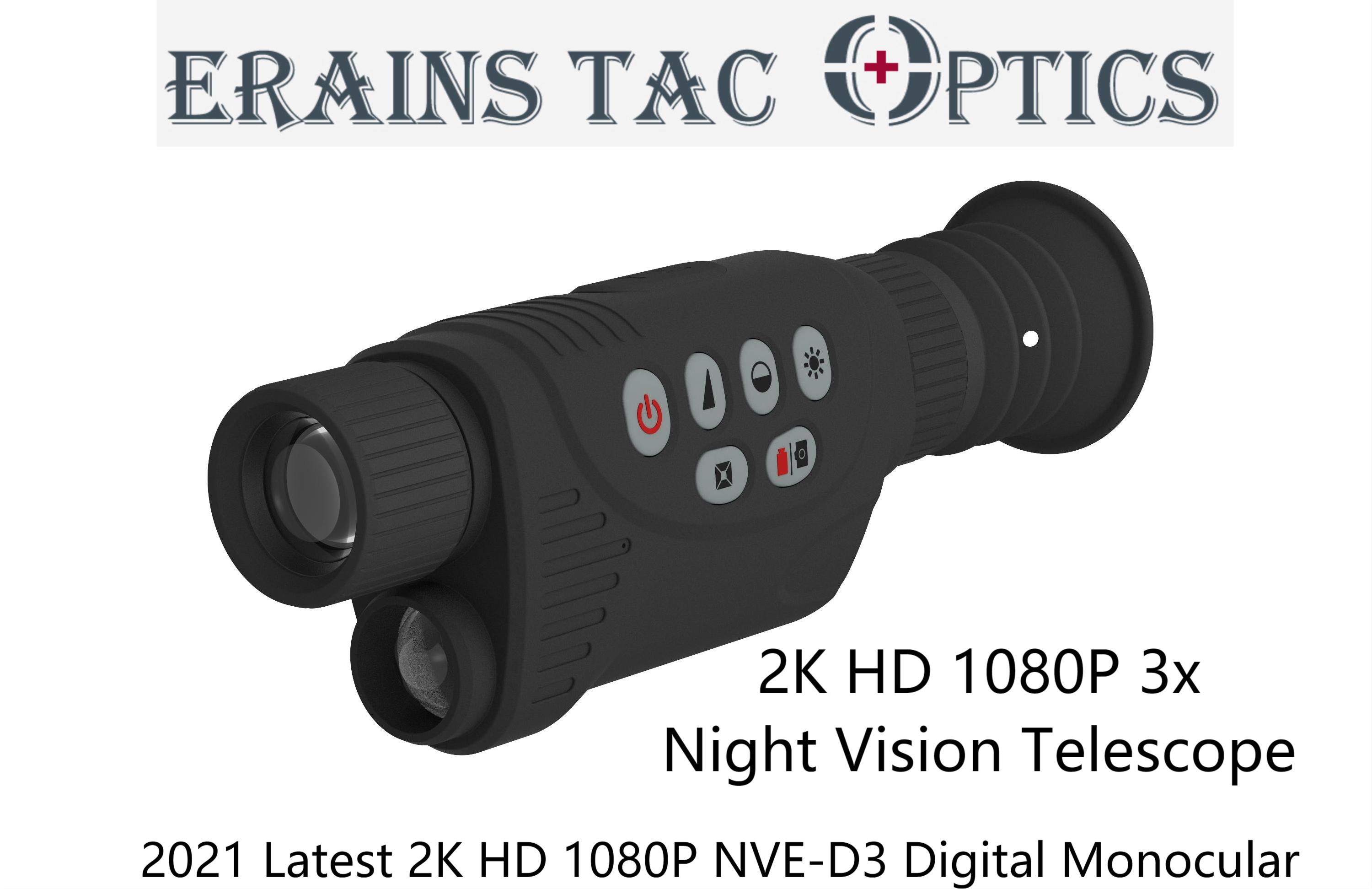

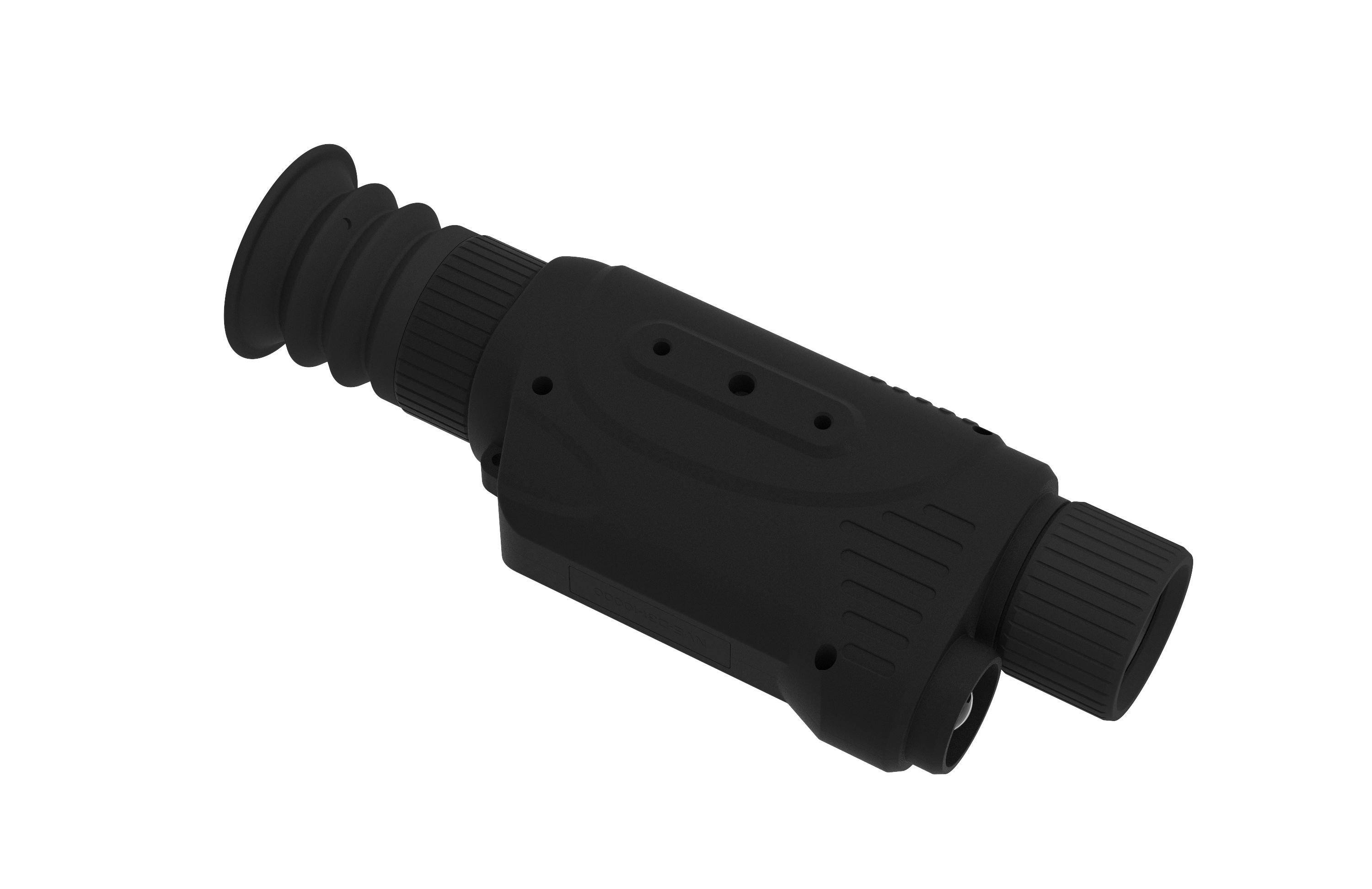

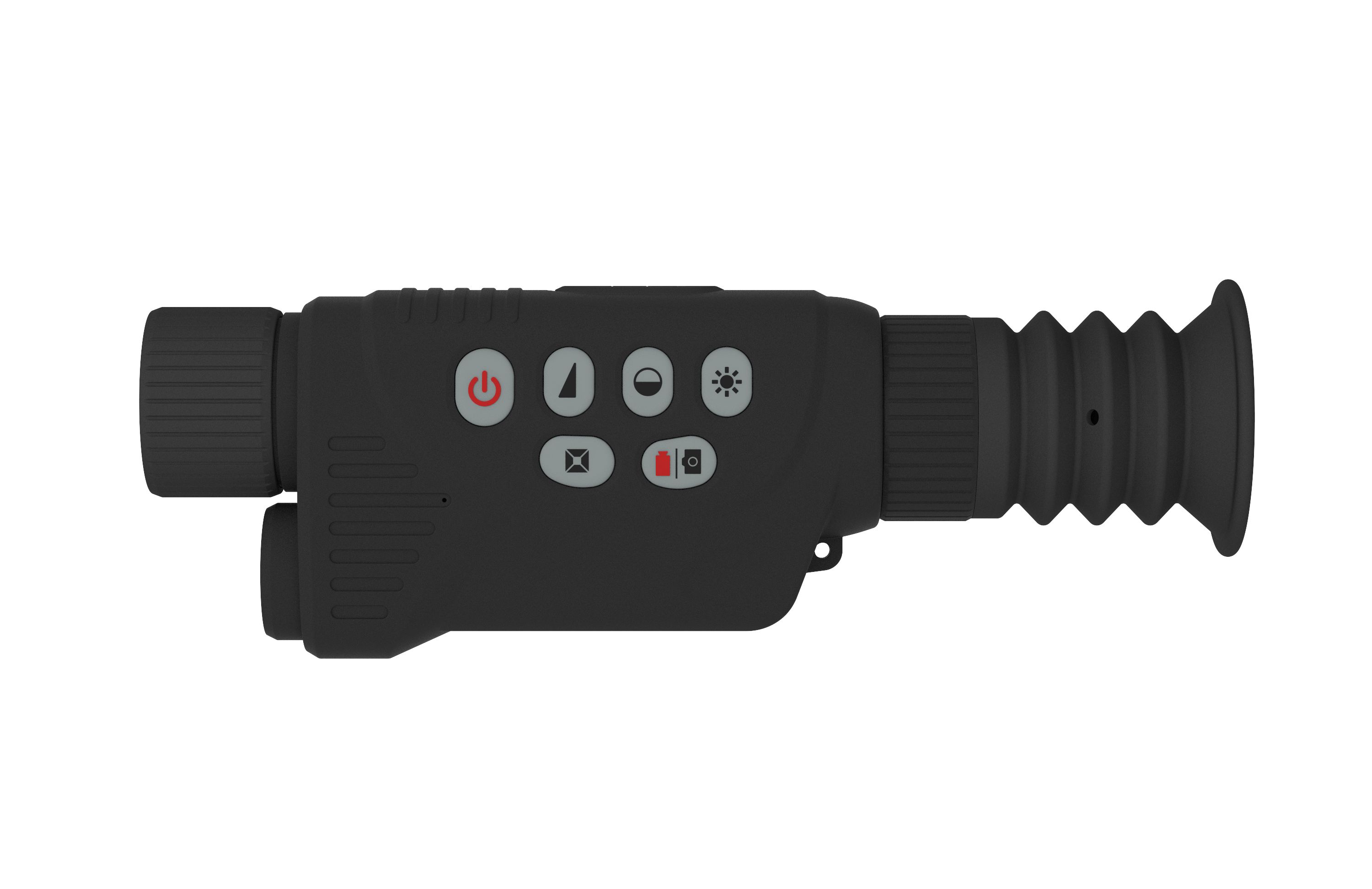

The Product Images:
Perfect Tactical Hunting and Camping Invisible IR illuminator Included 2K HD X3 1080P Night Vision Telescope Digital Monocular
Main Technical Description:
Magnification x3
Digital Zoom: x2
Weight (g) 345g
Reticle illumination power supply: (1x26650 built in rechargeable batteries)
A. Product Description:
ES-NVE-31 is the latest Invisible IR illuminator Attached Digital Monocular night vision telescope at its class that comes with definitely affordable price and high performance. With high resolution comes in Ultra 2K HD 2 cores , its resolution is EVEN BETTER than Some some famous brands. It can be mounted with a powerful and safe IR illuminator. It's widely used for police shooting training, hunting in the wild and shooting with security personnel.
ES-NVE-D31 Digital Monocular Full Technical Parameters:
Model: ES-NVE-D31
Range@Full Dark: 150meters
Gyroscope, e-Compass; GPS all included
Record : 1080P
Image Capture: 1080P
WiFi:1080P
APP: NVPIayPro, iOS@Apple App Store and Android@Google Play Store
IR : Invisable
Conditions: Day and Night
Optical Magnification: X3
Digital Zoom : X2
TF Card : Support max 128GB, Class4 and above Color: Black
Charger: USB, 5V@2A
Charge Current :5V@1 A
Battery: Build in Rechargable 26650 X 1
Battery Endurance : 3 to 4 Hours, Once charge
Net Weight: 345g
Mount: Picatinny Rail
Shell Material: Aluminium Alloy and Plastic
arranty: 12 Months
Operating Temperature: -20 to 55 degree
Storage Temperature: -30 to 60 degree
Relative Humidity: 90%, Non-Condensing
D. Precations:
1. Do not disassemble the unit.
2. It's better to use device under +5°C to +40°C. After the unit usage in temperatures below zero, wait at least 3 hours at room temperature, to avoid condensation accumulating on the internal lens surfaces and the consequent fogging caused by extreme temperature differences.
3. Keep the device in soft carrying bag, ventilated and dry place with temperature which does not exceed +15°C. Keep away from heating device and avoid direct sunlight and high humidity which does not exceed 70%.
4. NVE should be used in nighttime and can't be aim at strong light. If you have to test it during daytime, the front lens cap should never be removed. You can observe the target through the hole in the protection cap.
5.Use good quality lithium battery other than 26650 as bad quality batteries will effect the performance of the NVE and easily damage the device.
6. Try to avoid the rain and mist, and avoid dropping, shaking and collision.
7. Use clean soft cloth and dampened in alcohol,if necessary.
8. A useful tip is to remove the battery when the night vision will be not in use for over 3 days to prevent battery leakage and damaging the device.
Failure to follow the above precautions may cause the unit damage and will void the manufacturer's warranty.
E. Troubleshooting:
If the device does not turn on
1.Reinstall the battery with the correct polarity.
2.Replace battery.
3.Clean the battery compartment, focusing on the contact points.
The observed image flickers or flashes
This means there is too much light(e.g. observation during twilight conditions).Turn off the unit or place the objective lens cover.
The unit will function normally in light conditions not in excess of 0.1Lx(full moon).
The image is missing or not focused
1.Re-focus the unit by adjusting objective lens. Adjust diopter setting by rotating eyepiece, if necessary.
2.Check the cleanliness of the objective surface and eyepiece and clean if necessary.
3.Replace batteries.
4.In extreme low light conditions, activate the built-in IR illuminator.
Image disappeared or its quality worsened
1.Automatic shut off might occurred to protect the unit from excessive light. Attach the objective lens cover and ensure that unit started to function normally. Turn the unit off and wait until the conditions darken to continue observation.
2.Bright light sources(e.g. street lights)may cause visibility to decrease or disappear. Turn the monocular away from the light source, visibility will restore itself in several minutes.
You see black dots on the screen
These dots are minor cosmetic blemishes resulting from the image intensifier production processes and are not a sign of a defective or low quality unit. These dots do not interfere with the reliability and performance of the monocular.
F.Testing for all our devices:
Night Vision function test, vibration test, high temperature test, lens resolution test, rain test, waterproof test, glass transmittance test, shock resistance test etc.
J. Warranty :
Our warranty is 12 months from the date of purchase.
This night vision is a precise optical product, please operate it according to the manual. We only take the warranty responsibility for customers' correct operation. Tube replacement and man-made damage are not within the scope of the guarantee.
For detailed warranty info, please refer to Erains TAC Optics Warranty Service.
Warranty Service:
Warranty: Erains offers 12 months free warranty with up to 5 years limited warranty for night vision devices.
Warranty period:
Our products shall conform to design, manufacturing and performance requirements and be free from defects in material and workmanship for a period of TWO years from the date of pruchase. If any products are defective, please notify our company as soon as possible.
This warranty does not cover a product:
1. used in other than its normal and customary manner;
2. subjected to mishandling, abuse, misuse,improper storage;
3.subjected to alterations, modifications or repair by the customer of by any party other than our company without prior written consent of our company;
4.merchandise that has been discontinued by the manufacturer and either parts or replacement units are not available due to reasons beyond the control of our company;
5.subjected to improper operation, including use in conjunction with equipment which is electrically or mechanically imcompatible with or of interior quality to the product;
6. failure to maintain the environmental conditions specified by our company;
7. beyond 1 year limited warranty period;
8. force majeure.
Procedures:
Before sending defective product back, please Email your sales representative a sharp photo defective product and clearly indicates specific reasons for return, return address and contact information including contact person name, valid telephone numbers and proof of purchases that will help us to eatablish the valid start date of the warranty. Our sales representative will send you a return material authorization number( hereafter abbreviated as RMA#) after our service technician confirm it. Please clearly mark the RMA# on the outside of the shipping box and cut the warranty card along the dotted line, which lies at the last page of user manual.
Note: Products returns that do not have an RMA# listed or warranty card in the box may be refused or a significant delay in processing may occur.
Expenses:
Customer is responsible for shipping charge to our company for warranty service. Our company will cover return shipping to customer after warranty repair only if produts is covered by aforementioned warranty.
If defective products are not applicable for our company's warranty as stated above, customer will cover all costs such as shipping for sending back and returning, costs for spare parts and labor and all other expenses caused by this.
Remarks:
In the event a defect that is covered by the foregoing warranty occurs during the applicable period stated above, our company, at its option, will either repair or replace the product.
H. Kit includes :
Night vision weapon sight with red laser and IR Illuminator attached, Mounting rail, Protective carrying bag, Instruction manual, Lens cleaing cloth, Warranty card, Desiccant.
SUPPILIER R&D DEPARTMENT AND BOTH ERAINS WITH SUPPLIER DOUBLE QUALITY CONTROL GUARANTEE
Our Service
Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.
Warranty: 12 months free warranty with up to 5 years limited warranty for night vision devices.
We offer 12 months free warranty and 5 years limited warranty for our products with necessary repairing charges if they are out of free warranty period. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
Shipping Method
We provide comprehensive shipping methods, for small quantity orders we ship by DHL Air-Express, or EMS/TNT Express service, it is safe and fast. For large quantity orders we can ship by Air transportation or sea transportation, also we can ship order to buyer's cargo agent in China. We quoted prices are EXW price, don't include shipping cost.
Company Policy: Strive for the Customer Satisfaction
We have rich experience upon the international orders all over the world during the past 10 years. We can deliver the order to your office or home directly. We will combine the shipping cost for multi items purchase if you require.
FAQ
Finally, your feedback and suggestion are very important for us.
Thanks again for your attention. We sincerely hope you will enjoy our products.
All our products are built for real firearms. Our latest lasers are manufactured with high quality components and materials. Excellent quality and stable performance. Water resistant, shock proof and recoil proof via (under) necessary condition testing.
