Model: ES-XL--NXFG

Name: Subcompact tactical Green laser with strobe led light combo

FDA accession number is available for this model.

Product Origin: China

Supply Ability: 1000 pcs/month

Minimum Order: 100 pcs

Delivery Lead Time for MOQ: 20 days



TECHNICAL DESCRIPTION

Wavelength: 532nm

Laser Type (mw): 5

Battery: 3x 1/3N Lithium Non-Rechargeable Battery, 3pcs

Battery Continuous runtime: 20minutes (both laser and light working on)
2hours (only laser)
50minutes (only light)

LED detailed information

LED model: CREE Q5 LED

Power: 3W

LED brightness: Up to 80 lumens blinding beam

Light color: Cold white

Working Temperature:-40C ~ +85C

Light attenuation: Less than 3% after 10k hours

Life time: ≤ 50000 hours

Laser detailed information

Wavelength: 532 nm

Working Temperature: +5C ~ +50C

Life time: ≤ 5000 hours

Working volt: 9V

Laser with with led light combo Info:

Weight with Battery: 46g

Housing Dimension:   (L)45*(W)45*(H)38mm

Warranty: Extended Warranty

Material:  PA66 (Fiber Reinforced Nylon)

Operation:  Ambidextrous push on/off Switch on both sides of the sight and easy toggle switch swift from each 3 modes.

Rail Type: MIL-STD-1913 Picatinny Rail





Laser with with led light KIT INCLUDES

Compact green aser and LED Flashlight combo

Calibration tools

3PCS 1/3N Lithium Non-Rechargeable Batteries

User manual

PACKING

Packing: 1 unit/gift box, 125 units/master carton

Unit package: Gift EVA box or white box

Master Carton: Top cardboard carton

Laser with with led light FEATURES

A power-saving design (keep batteries staying inside of the porudct by cutting off the power from the circut waifer)

Quick target acquisition

Super-Lightweight

Super-Compact

Safe and adjustable

Dust and Shockproof

Quick push on/off Switch and easy toggle switch swift from each modes.

Plastic housing and aluminium head on the laser diod.

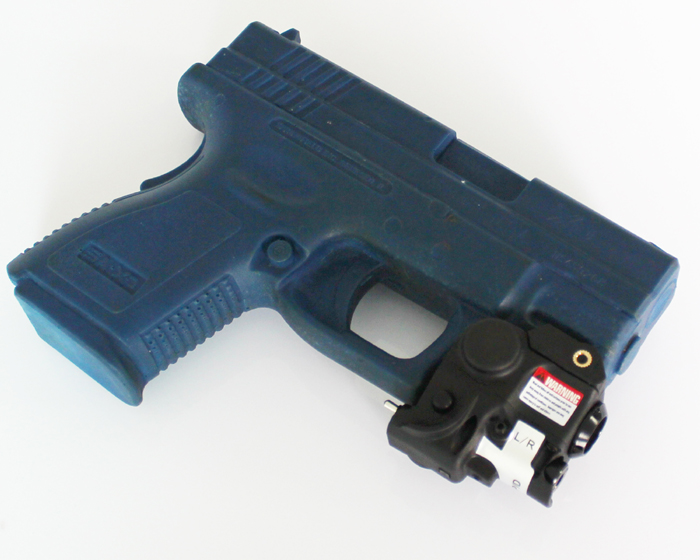

Fits existing pistol holsters while mounted on the pistol.

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

LASER SIGHT ZEROING

For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide with the laser sight line, this point is the zero range.

Laser adjustment and the muzzle velocity of the bullet determine where this point occurs. The user must decide how high above or below the sight line the bullet can be allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the sight line. Beyond the zero range the bullet will be the sight line.

If mounted to the side, the bullet will also deviate to the side of the laser line, as well as up and down. In practice, a ES-MN-L2 series combo on a handgun can be adjusted to keep the bullet strike within about 2 high and 2 low out to about 100 feet.

BATTERY SUPPLY

The ES-XL-NXFG laser sight+LED light combo uses 3x 1/3N Lithium Non-Rechargeable Batteries. The 1/3N negative and positive pole has been indicated on the housing.

DANGER: DO NOT use anything other than a 1/3N lithium 3.0V CR-123 battery or nonmatched rechargeable batteries with this product.

Product Warranty, Shipping Method and Payment Method

Warranty, we offer 12 months limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications and repairs are not covered by our warranty.

Payment Mothed, we usually accept the payment methods include Paypal, Bank Transfer, Western Union, and MoneyGram. 30% deposit in advance and balance before shipping. Buyer can choose which payment ways that you accept. Paypal is most useful and safe, please don’t refuse paypal fee when you choose Paypal.

Shipping Method, We provide comprehensive shipping methods, for small quantity orders we ship by DHL Air-Express, or EMS/TNT Express service, it is safe and fast. For large quantity orders we can ship by Air transportation or sea transportation, also we can ship order to buyer’s cargo agent in China. We quoted prices are EXW price, don’t include shipping cost.
