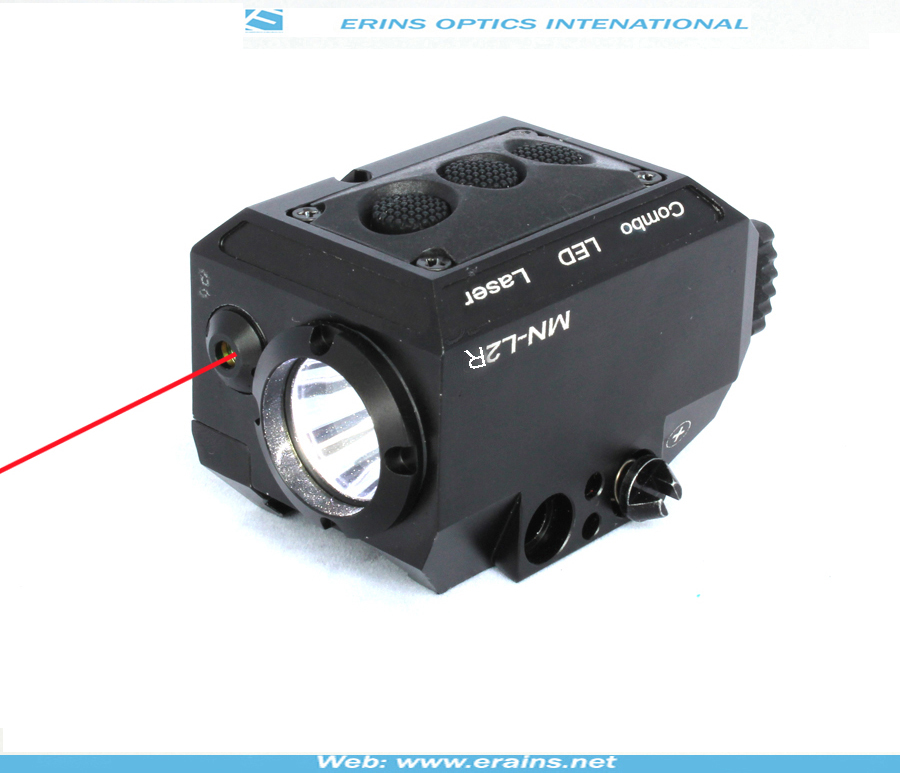

Model: ES-MN-L2R

Name: New Compact tactical square red laser sight and strobe led light combo

FDA accession number is available for this model.

Product Origin: China

Supply Ability: 1000 pcs/month

Minimum Order: 100 pcs

Delivery Lead Time for MOQ: 20 days

Compact tactical square red laser sight and strobe led light combo TECHNICAL DESCRIPTION

Wavelength: 635nm

Power Output: 3 W

Laser Type (mw): 5

Battery: 1x CR123 Lithium Battery

Battery Life: 2 hours of runtime for both red laser and light on, 30 hrs (only red laser), 2 hrs(only light)

LED detailed information

LED model: CREE Q5 LED

Power: 3W

LED brightness: Up to 225 lumens blinding beam

Light color: Cold white

Working Temperature:-40C ~ +85C

Light attenuation: Less than 3% after 10k hours

Life time: ≤ 50000 hours

Laser detailed information

Wavelength: 635 nm

Working Temperature: -20C ~ +50C

Life time: ≤ 5000 hours

Working volt: 3V

Compact tactical square red laser sight and strobe led light combo Info:

Weight with Battery: 124g

Housing Dimension: 63(L)*40(W)*40(H)mm

Warranty: Extended Warranty

MaterialAluminium alloy 6061-T6 with black anodized finish

Operation: Ambidextrous Momentary/Steady on-off push 3 button Switches + end push switch with blue light indication.

IR remote control siwtch (optional, be out later)

Rail Mount: Integrated mount

Compact tactical square red laser sight and strobe led light combo KIT INCLUDES

Compact dual square red aser and LED Flashlight combo

Calibration tools

1x CR-123A lithium battery

User manual

Compact tactical square red laser sight and strobe led light combo PACKING

Packing: 1 unit/gift box, 125 units/master carton

Unit package: Gift EVA box or white box

Master Carton: Top cardboard carton

Compact tactical square red laser sight and strobe led light combo FEATURES

Quick target acquisition

Lightweight

Compact

Safe and adjustable

Dust and Shockproof

Ambidextrous Momentary/Steady on-off Switch

Machined anodized aluminum housing

Fits existing light bearing holsters

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

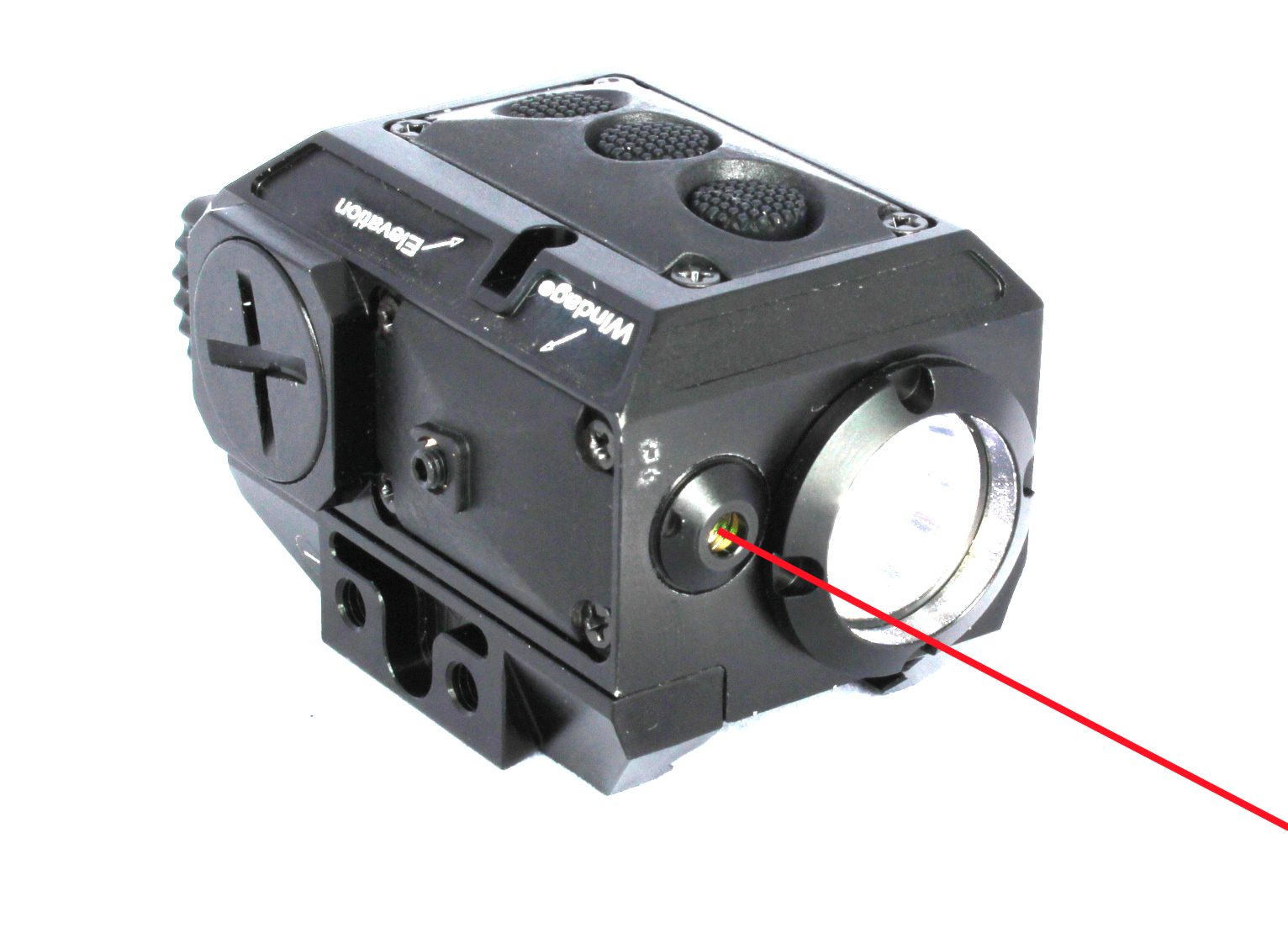

LASER SIGHT ZEROING

For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide with the laser sight line, this point is the zero range.

Laser adjustment and the muzzle velocity of the bullet determine where this point occurs. The user must decide how high above or below the sight line the bullet can be allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the sight line. Beyond the zero range the bullet will be the sight line.

If mounted to the side, the bullet will also deviate to the side of the laser line, as well as up and down. In practice, a ES-MN-L2 series combo on a handgun can be adjusted to keep the bullet strike within about 2 high and 2 low out to about 100 feet.

BATTERY SUPPLY

The ES-MN-L2R red laser sight+LED light combo uses 1x CR-123 (3V) battery. The CR-123A negative and positive pole has been indicated on the housing.

DANGER: DO NOT use anything other than a CR-123 battery or rechargeable batteries with this product.
