Model: ES-XL-2LL-R

Name: Weapon-mount intergrated Tactical Strobe Red laser sight scope and strobe led flashlight combo

Product Origin: China

Supply Ability: 1000 pcs/month

Minimum Order: 100 pcs

Delivery Lead Time for MOQ: 20 days

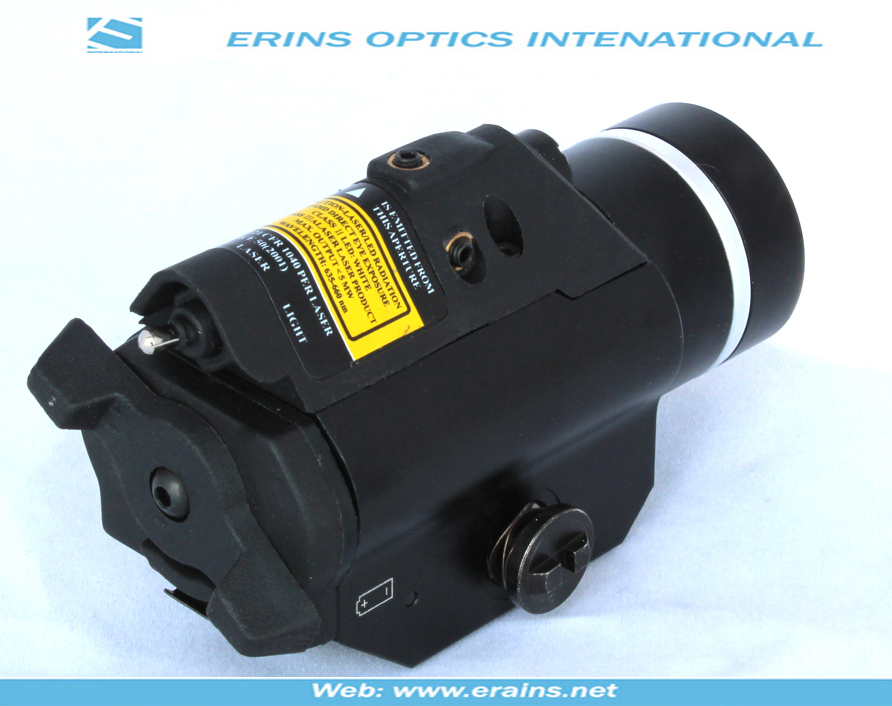

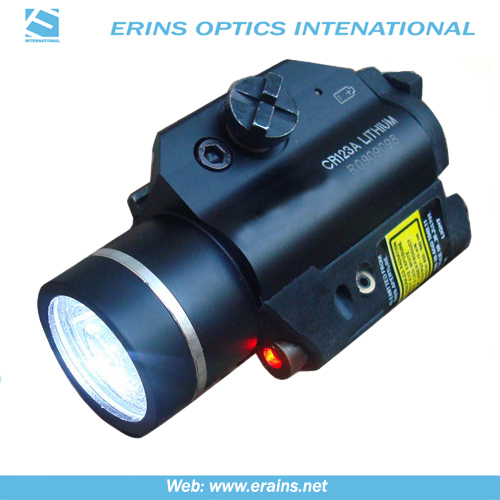

Tactical Red Laser Sight Scope wth LED Flashlight Combo

TECHNICAL DESCRIPTION

Wavelength: 650-660nm

Power Output: 3 W

Laser Type (mw): 5

Battery: Two CR123 Lithium Batteries

Battery Life: 2.5 hours of runtime

Lamp cup radiation angel: 45 degree

LED detailed information

LED model: CREE Q5 LED-003

Power: 3W

Diameter: Ø 8 mm

Length: 85 mm

LED brightness: Up to 200 or 225 lumens blinding beam, Bright sidelight

LED radiation angel: 120 degree

Light color: Cold white

Max electric current: 750mA

Working Temperature:-20 ~ +65

Storage Temperature:-40 ~ +85

Light attenuation: Less than 3% after 100k hours

Life time: ≤ 50000 hours

Laser detailed information

Model: LD-650-5X

Diameter: Ø 5.6 mm

Length: 5 mm

Working Temperature: -40 ~ +45

Storage Temperature: -50 ~ +65

Max electric current: 50mA

Life time: ≤ 5000 hours

Working volt: 3V

Weight with Battery: 4.72 oz, 133.8g

Warranty: Extended Warranty

Construction: Aircraft aluminum 7061-T6

Finish: Anodic oxidation/ V' r3 black

Operation: Ambidextrous Momentary/Steady on-off Switch

Rail Mount: Integrated mount

KIT INCLUDES

Tactical Red Laser sight and LED Flashlight integrated group

Calibration tools

2 CR-123A lithium batteries

User manual

PACKING

Packing: 1 unit/gift box, 50 units/master carton

Unit package: Gift paper box

Master Carton: Top cardboard carton

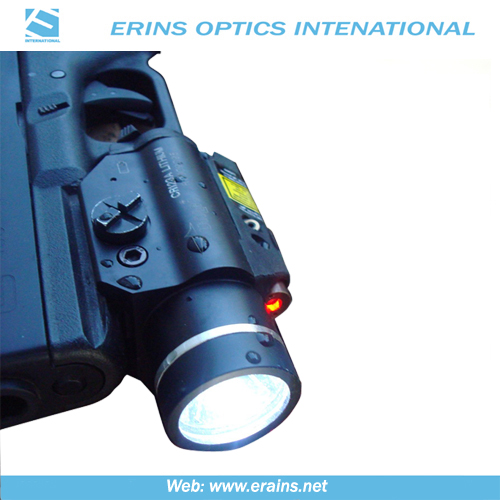

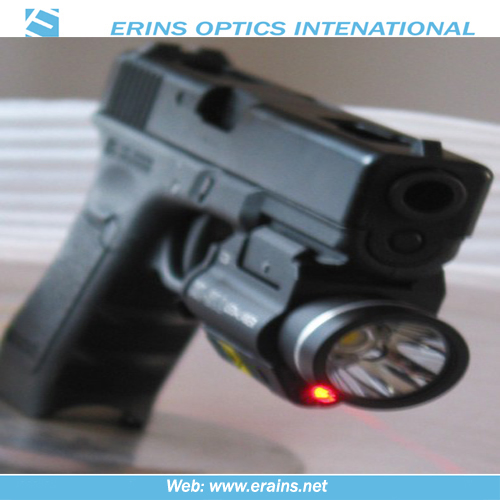

Tactical LED Flashlight with Red Laser sight scope Combo FEATURES

Quick target acquisition

Lightweight

Compact

Safe and adjustable

Dust and Shockproof

Ambidextrous Momentary/Steady on-off Switch

Machined anodized aluminum housing

Fits existing light bearing holsters

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

LASER SIGHT ZEROING

For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide with the laser sight line, this point is the zero range.

Laser adjustment and the muzzle velocity of the bullet determine where this point occurs. The user must decide how high above or below the sight line the bullet can be allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the sight line. Beyond the zero range the bullet will be the sight line.

If mounted to the side, the bullet will also deviate to the side of the laser line, as well as up and down. In practice, a XL-2LL on a handgun can be adjusted to keep the bullet strike within about 2 high and 2 low out to about 100 feet.

Tactical LED Flashlight with Red Laser Sight Scope Combo BATTERY ASSEMBLY

The ES-XL-2LL laser sights use 2 CR-123 (6V) batteries. The CR-123s negative and positive pole has been indicated on the mount.

DANGER: DO NOT use anything other than a CR-123 battery or rechargeable batteries with this product.

To access the battery compartment you must first remove the flashlight from the firearm. Follow the XL removal procedure instructions to remove the flashlight from the firearm.

1.       Unclip the door latch, the latch is tight, it may help to use a coin.

2.       Slip the batteries from the flashlight.

3.       Insert the new batteries observing polarity. Note: The flashlight is polarity protected and will not light if the batteries are inserted incorrectly.

4.       Hold the battery switch/door at an angle and place the small tab on the bottom of the battery/door switch into the slot in the flashlight body.

5.       Firmly push and hold the door closed against the flashlight body.

6.       Swing the door latch over the door and snap it into place.

Tactical LED Flashlight with Red Laser Sight Scope Combo MOUNTING/REMOVAL PROCESURE

Make sure that the firearm is unloaded and the breech is open. It is imperative that safety measures by employed at all times while handling the firearm.

1. The XL is design to be quickly attached or detached from the side of the weapon or accessory rail.

2. Loosen the rail clamp tension bolt.

3. Angle the XL, placing the fixed portion of the rail clamp against the accessory rail and align the rail key with the appropriate cross groove in the accessory rail.

4. Slightly depress the tension bolt to open the rail lamp, rotate the XL into place and release the pressure on the tension bolt to snap the light in place.

5. Check for fit and tighten tension bolt until the XL is securely attached to the firearm.

Tactical LED Flashlight with Red Laser sight scope combo MAINTENACE

The XL rail clamp tensioning bolt requires an application of high quality gun oil to keep it rust free. Use a soft cloth and mild detergent to clean the glass LED lens and keep it free of dirt and grime. The laser aperture (XL-2LL) can be cleaned with a Q-tip 9or similar item) and mild detergent.

Note: always avoid aggressive cleaning solutions as they may damage the XL.

XL PARTS

Note: The XL rail key can be changed to accommodate several varieties of mounting rails. Remove the rail key screw with a 7/64^th hex wrench and pull the rail key from the body. Insert the new rail key and fasten it in place with the rail key screw.

...
