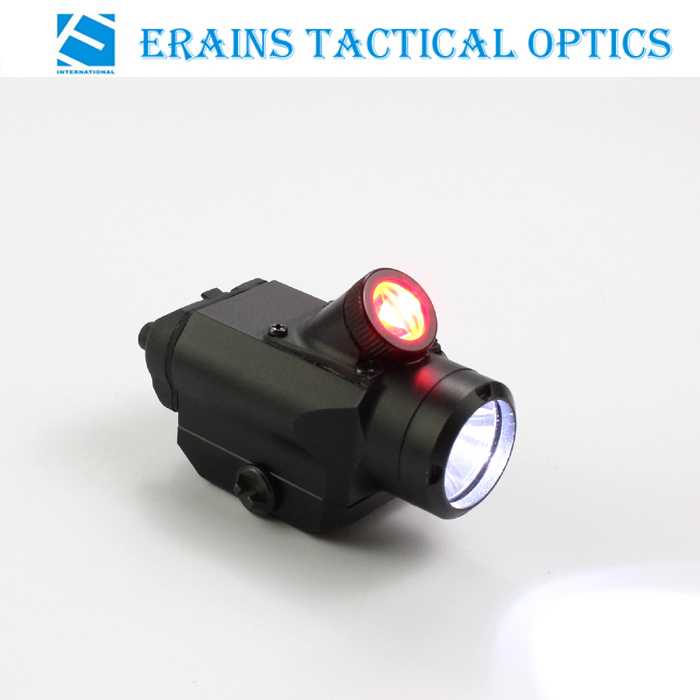

Erains TAC Optics Tactical Pistol weapon LED flashlight with 225 lumens CREE WHITE LED with 15 lumens of red LED light combo
1.Tactical Sytle for pistol and real weapons
2.225 lumens Cree LED
3. Quick release picatinny mount base that fits most pistols w/ bottom rail.
4.On/Off Push Switch
5. OEM &ODM serivce offered
6. Pressure pad switch included
7. Rechargeable batteries with charger are optional
8. Strobe led light function optional
9. 45 degree red led light intergrated
10. Buyer's LOGO engraved on.
11. OEM &ODM serivce offered
The perfect light combo which enables you to discover any threats on your feet with the 45 degree red LED light while you are illuminating the target straight ahead with your main white LED light. No tiny threats would be missing.
Width: 33mm for the torch boday, 21mm for the mount rail width
Heigt: 43mm
LED brightness: Up to 200 or 225 lumens blinding white beam, 25 lumens for red LED
Light color: Cold white for main LED, RED for 45 degree LED
White LED effective range: 200 meters
Red LED effective range: 15meters
Working Temperature: -40 ~ +80
Light attenuation: Less than 3% after 10k hours
Life time: ≤ 60000 hours
High quality aluminum alloy T6061 in durable black matte finish
Fine Gift Window Box Package
Quick release picatinny mount base that fits most pistols w/ bottom rail.
Model: ES-LS-2HY02Q (45QD)
Flashlight Output / Brightness: 225 lumens
Bulb: CREE Q5 LED Bulb
Voltage: 3.0-8.2V
Battery Life: 1.5 hours of runtime for new or fully charged batteries for both led lights on
Length: 72.5 mm
Product Features
Light color: Cold white
LED effective range: 300 meters for white LED, 15 meters for red LED
Working Temperature: -40 ~ +80
Light attenuation: Less than 3% after 10k hours
Life time: ≤ 60000 hours
Warranty: Extended Warranty of 13-18 months
Construction: Aircraft aluminum 6061-T6
Finish: Anodic oxidation/ V' r3 black
Operation: Ambidextrous Momentary/Steady on-off Switch
Rail Mount: Integrated mount
KIT INCLUDES
Tactical LED Flashlight integrated mount
Calibration tools
2 CR-2 lithium batteries (rechargeable batteries with charger are optional)
Tail wire pressure pad switch
PACKING
Packing: 1 unit/gift box, 50 units/master carton
Unit package: Gift paper box or white box
Master Carton: Top cardboard carton
FEATURES
Lightweight
Compact
Safe and adjustable
Dust and Shockproof
Ambidextrous Momentary/Steady on-off Switch
Machined anodized aluminum housing
Fits existing light bearing holsters
Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.
The actual working effective with both white and red LED lights on:
Product Brief Description
Introducing the ES-LS-2HY02 series rail-mounted tactical LED light.
ES-LS-2HY02 serie light fit all middle size and full size pistol and all with standard Picatinny rail weapon.
Compact constructed from aluminium alloy 6061-T6 with black anodized finish, Owned CREE Q5 LED chip maximum brightness 200-225 lummens, use 2pcs CR2 3 volt lithium batteries the Runtime over 2.5-3 hours for light working.
Its green laser has excellent performance in low temperature environment, even -10°C it has stable and stanchly working performance.
The ES-LS-2HY02 series light and were designed and built for combat deployment with special operations personnel. Available in either pistol or long gun configuration. Equipped with high-performance LED, has a run time of over 240 minutes and provides 200-225 lumens, and white light has strobe function. Machined aluminum sealed construction with black anodized finish. (Material 6061-T6), excellent working performance and good seals, dust-proof, water-proof, shock-proof and weapons recoil-proof. Rail grip clamp system securely attaches/detaches quickly and safely with no tools and without putting your hands in front of muzzle. Fast, Adjustable, Secure Side mounting to 1913 and Glock style Rails. Ambidextrous momentary/steady on/off switch. Highly accurate sight repeatability when remounting.
ES-LS-2HY02 Series Model Family(s) include model:
ES-LS-2HY02I (02QD), Tactical LED Light with constant light (strobe function is available).
ES-LS-2HY02G,Tactical LED Light with green laser combo
ES-LS-2HY02R, Tactical LED Light with red laser combo
ES-LS-2HY02Q (45QD), Tactical LED Light with 45 degree red LED light combo
BATTERY ASSEMBLY
The ES-LS-2HY02I (02QD) LED flashlight uses 2 CR-2 (6V) batteries. The CR-2s negative and positive pole has been indicated on the mount.
DANGER: DO NOT use anything other than a CR-2 battery or rechargeable batteries with this product.
To access the battery compartment you must first remove the flashlight from the firearm. Follow the QD light removal procedure instructions to remove the flashlight from the firearm.
1. Unclip the door latch, the latch is tight, it may help to use a coin.
2. Slip the batteries from the flashlight.
3. Insert the new batteries observing polarity. Note: The flashlight is polarity protected and will not light if the batteries are inserted incorrectly.
4. Hold the battery switch/door at an angle and place the small tab on the bottom of the battery/door switch into the slot in the flashlight body.
5. Firmly push and hold the door closed against the flashlight body.
6. Swing the door latch over the door and snap it into place.
MAINTENACE
The LS-2HY02 series rail clamp tensioning bolt requires an application of high quality gun oil to keep it rust free. Use a soft cloth and mild detergent to clean the glass LED lens and keep it free of dirt and grime. The laser aperture (LS-2HY02) can be cleaned with a Q-tip 9or similar item) and mild detergent.
Note: Always avoid aggressive cleaning solutions as they may damage the LS-2HY02 series light or combos
LS-2HY02 PARTS
Note: The LS-2HY02 rail key can be changed to accommodate several varieties of mounting rails, as well as the end pressure pad switch plug.
Remove the rail key screw with a 7/64th hex wrench and pull the rail key from the body. Insert the new rail key and fasten it in place with the rail key screw.
Individual box packing,shipping depends
Each unit has included below kits:
- 2 piece of CR2 batteries (rechargeable batteries and charger set are optional)
- Fine Window box
- 1x Pressure pad switch (optional)
Our Service
Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.
Warranty: 1 Year free warranty with up to 3 years limited warranty for this model designator.
Warranty, we offer 13 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
Shipping Method, We provide comprehensive shipping methods, for small quantity orders we ship by DHL Air-Express, or EMS/TNT Express service, it is safe and fast. For large quantity orders we can ship by Air transportation or sea transportation, also we can ship order to buyer's cargo agent in China. We quoted prices are EXW price, don't include shipping cost.
Company Policy: Strive for the Customer Satisfaction
We have rich experience upon the international order all over the world. We can deliver the order to your office or home directly. We will combine the shipping cost for multi items purchase.
FAQ
Finally, your feedback and suggestion are very important for us.
Thanks again for your attention. We sincerely hope you will enjoy our products.
All our products are built for real firearms. Our latest LED lights or the light with laser combos are manufactured with high quality components and materials. Excellent quality and stable performance. Water resistant, shock proof and recoil proof via (under) necessary condition testing.
