Model: ES-XL-X9

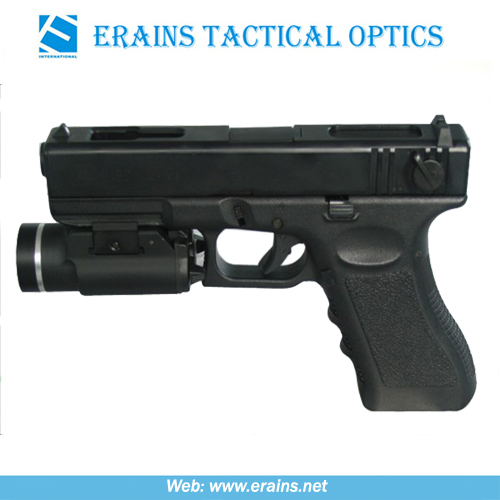

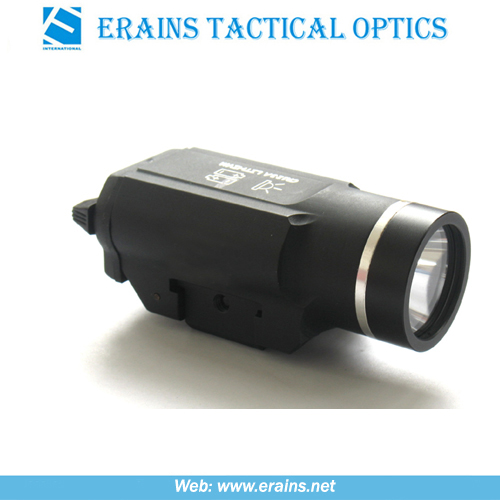

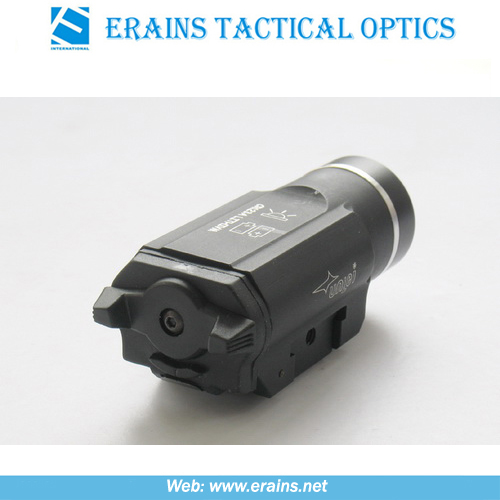

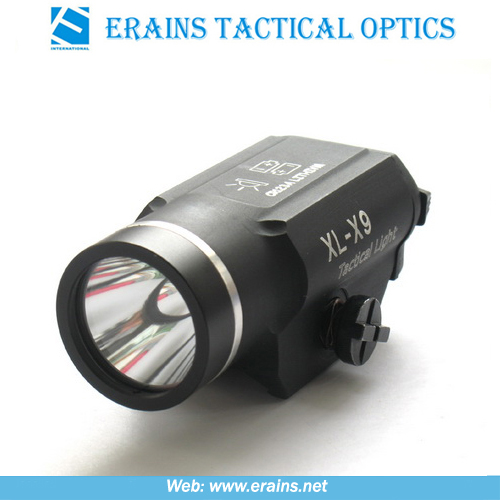

Name: Weapon-mounted XL-X9  Tactical Flashlight and Led Torch, laser and led combo, laser and LED flashlight combo, tactical led light, led torch with strobe function

Product Origin: China

Supply Ability: 1000 pcs/month

Minimum Order: 100 pcs

Delivery Lead Time for MOQ: 20 days

TECHNICAL DESCRIPTION

Power Output: 3 W

Battery: Two CR123 Lithium Batteries

Battery Life: 2.5 hours of runtime

LED detailed information

LED model: LED-003 CREE Q5 200 lumen LEDs

Power: 3W

Diameter: Ø 8 mm

Length: 85 mm

LED brightness: Up to 200 or 225 lumens blinding beam, Bright sidelight

LED radiation angel: 120 degree

Light color: Cold white

Max electric current: 750mA

Working Temperature:-40 ~ +80

Light attenuation: Less than 3% after 10k hours

Life time: ≤ 50000 hours

Weight with Battery: 4.72 oz, 133.8g

Warranty: Extended Warranty

Construction: Aircraft aluminum 7061-T6

Finish: Anodic oxidation/ V' r3 black

Operation: Ambidextrous Momentary/Steady on-off Switch

Rail Mount: Integrated mount



KIT INCLUDES

Tactical LED Flashlight integrated mount

Calibration tools

2 CR-123A lithium batteries

User manual

PACKING

Packing: 1 unit/gift box, 50 units/master carton

Unit package: Gift paper box or white box

Master Carton: Top cardboard carton

FEATURES

Lightweight

Compact

Safe and adjustable

Dust and Shockproof

Ambidextrous Momentary/Steady on-off Switch

Machined anodized aluminum housing

Fits existing light bearing holsters

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

BATTERY ASSEMBLY

The ES-XL-X9 LED flashlight uses 2 CR-123 (6V) batteries. The CR-123s negative and positive pole has been indicated on the mount.

DANGER: DO NOT use anything other than a CR-123 battery or rechargeable batteries with this product.

To access the battery compartment you must first remove the flashlight from the firearm. Follow the XL removal procedure instructions to remove the flashlight from the firearm.

1.       Unclip the door latch, the latch is tight, it may help to use a coin.

2.       Slip the batteries from the flashlight.

3.       Insert the new batteries observing polarity. Note: The flashlight is polarity protected and will not light if the batteries are inserted incorrectly.

4.       Hold the battery switch/door at an angle and place the small tab on the bottom of the battery/door switch into the slot in the flashlight body.

5.       Firmly push and hold the door closed against the flashlight body.

6.       Swing the door latch over the door and snap it into place.

MAINTENACE

The XL rail clamp tensioning bolt requires an application of high quality gun oil to keep it rust free. Use a soft cloth and mild detergent to clean the glass LED lens and keep it free of dirt and grime. The laser aperture (XL-2LL) can be cleaned with a Q-tip 9or similar item) and mild detergent.

Note: always avoid aggressive cleaning solutions as they may damage the XL.

XL PARTS

Note: The XL rail key can be changed to accommodate several varieties of mounting rails. Remove the rail key screw with a 7/64^th hex wrench and pull the rail key from the body. Insert the new rail key and fasten it in place with the rail key screw.
