Model: ES-RD-SVD-1X

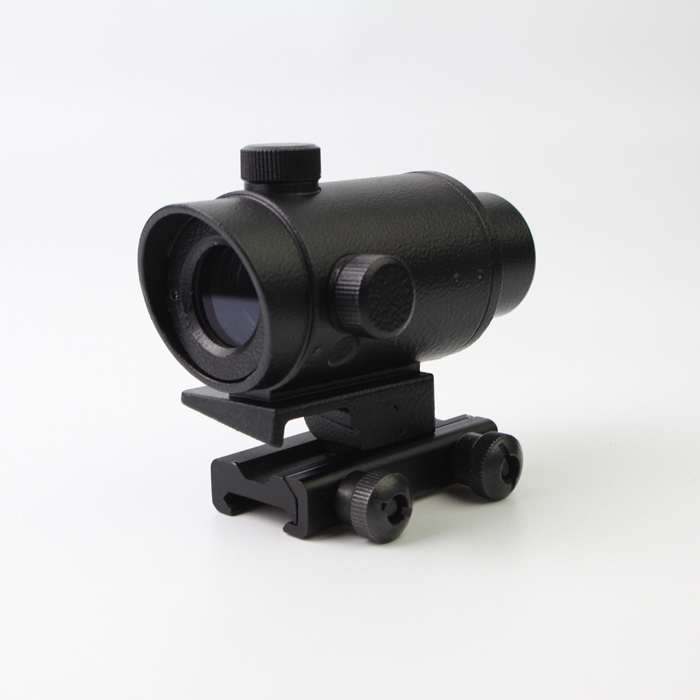

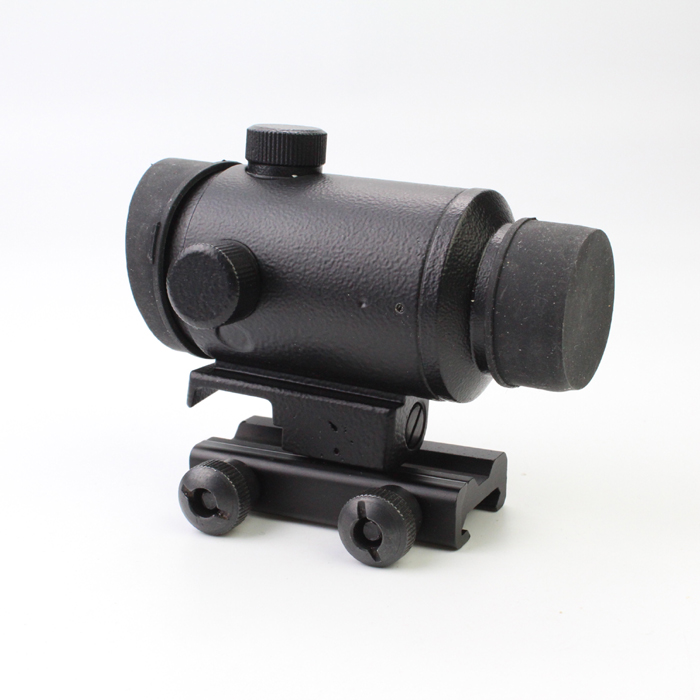

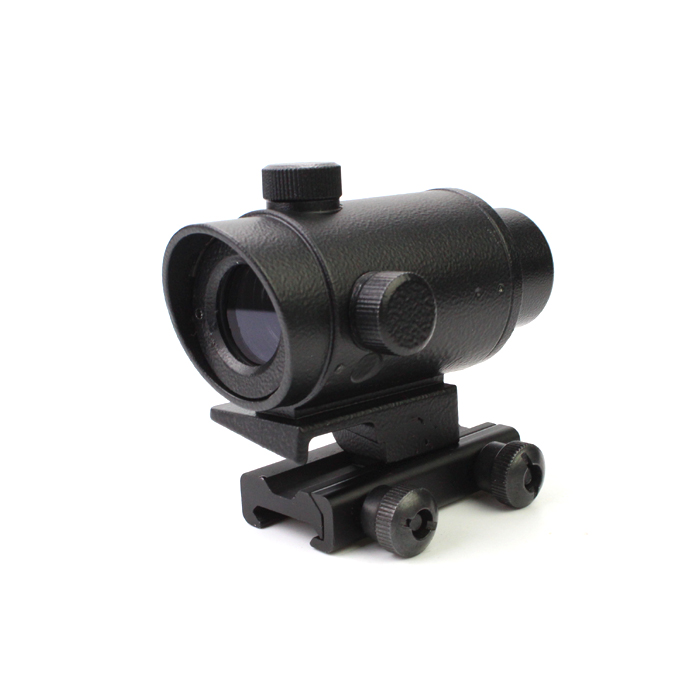

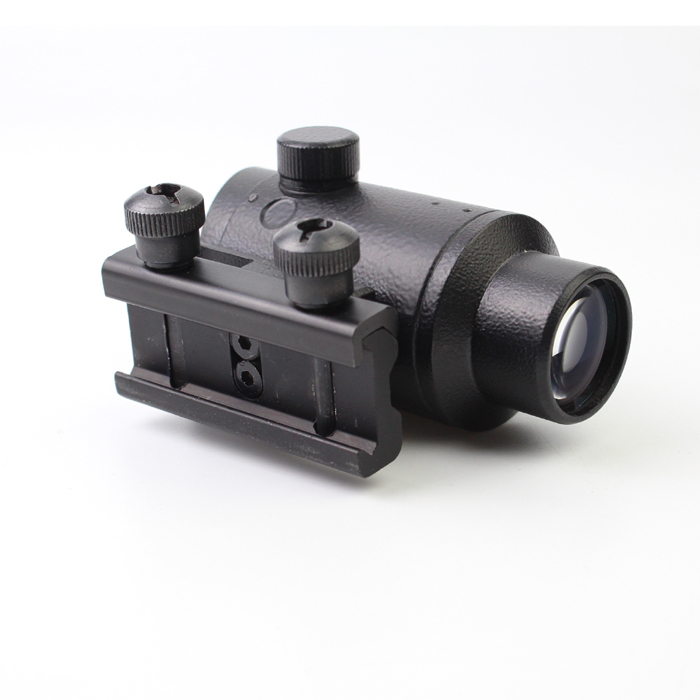

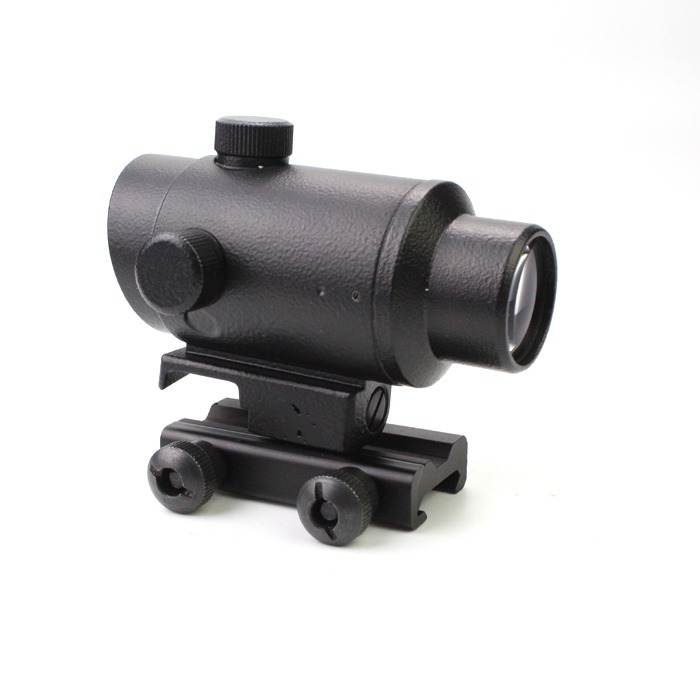

Name: The tactical Close Combat 1x23 SVD Red Dot with Tritium Power Illuminating Green Reticle SightRifle Scope

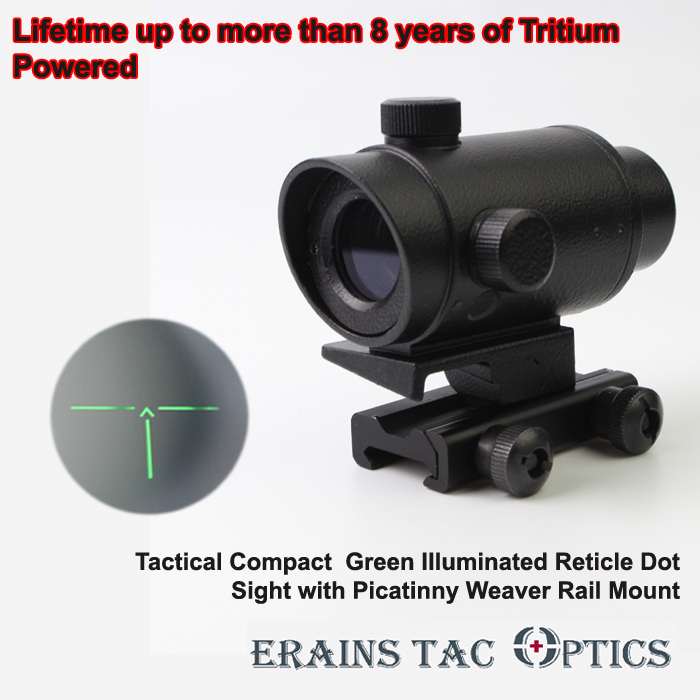

Normal dot or unitque Chevron reticle are available.

Specifications and Feature:

Tactical 1X Green Dot Reticle Sight Rilfe Scope
1. 1X magnification
2. Chevron reticle available
3. Full Metal with polish finish
4. More than 8 year constant Tritium power supply
Detailed description and introduction of this unique sight design:

• Model Name: ES-RD-SVD-1X Tactical Trtium Power Illuminating Green Dot Reticle Sight Riflescope
• Magnification: 1x
• Objective Lens Dia: 23mm Wide field window, fine for rapid shoot and moving target
• Scope Lenth : 4 inches
• Mount type: weaver/picatinny
• Weight (net): 12.3
• Exit pupil(mm): 13.5
• Eye Relief: 3.7 inches
• Field of View (M@ 100yards): 64
• Optics Coating: Multi Coated
• Reticle color: Single green illumination
• Reticle type: Normal dot or unitque Chevron reticle is available
• Click value (1 click=MOA)  : 1/2″
• Windage & Elevation @ 100 Yards(MOA) : ±40M.O.A
• Tritium power tube consumption lifetime: Within or More than 8 Years
• Operating temperature: 0-120ºF
• Parallex setting(yds): 100
• Diopter adjustment range: -0.75D

• Shock proof (1000g) and Fog Proof
• High quality Aluminum Alloy in durable black matte finish with Rosting Oxidized

• Feature 1/2″ M.O.A (100 Yards) windage and elevation with for greater precision

• Install on 21mm picatinny and weaver rail
  Warranty Service: Within 13 months including shipping after production

• Erains TAC Optics products are all made in China and under our strict quality control

It is recommended to have the red dot sight mounted by a professional gunsmith. However, if attempting to mount the sight without professional assistance please read and strictly adhere to the following directions.

BORESIGHTING THE RED/GREEN RETICLE OR DOT SIGHT
Boresighting and test firing should be performed safely on a firing range. Laser boresights are a quick and accurate method to sighting in scopes .Listed below is the traditional method of boresighting.
1. When mounting the sight on a bolt action rifle, remove the bolt; or when mounting to a semi automatic rifle, disassemble the rifle until there is a straight line of sight through the bore.
2. Use a target at least 20yds to 50yds away when sighting in. Look through the bore of the weapon and locate the bullseye of the target.
3. Sight in the target through the bore and then make windage and elevation adjustments to the sight until the reticle is centered.
To verify the scope is sighted in, fire a three-shot test group.
4. If you are still off center, make the necessary adjustments and again fire a three-shot test group.

OPERATING THE WINDAGE AND ELEVATION ADJUSTMENTS
To make windage and elevation adjustments:
1. Remove the both caps covering the windage and elevation adjustments.
2. Using a flathead screwdriver or coin make the necessary adjustments. The windage and elevation adjustments are ±40M.O.A meaning 1 click moves the point of impact 1/2 in. at 100 yds. Adjustments can be both felt and heard.
3. Once adjustments are complete, screw the caps back on.

MAINTENANCE
Proper maintenance of the red dot sight is recommended to ensure longevity. It is recommended that when the dot sight becomes dirty, it is wiped down with a dry or slightly damp cloth. Blow dirt and debris off all optics and then clean lenses with a lens cleaning cloth. No further maintenance is required.

WARNING
Always follow your firearm's instruction manual and warnings. Follow safe firearm practice. WARNING! Never attempt to mount the sight on a loaded firearm. DO NOT disassemble the sight for any reason as this will void the warranty and could be hazardous. Any internal work should be handled by the manufacturer. Any tampering with the purge screw will void the warranty.

TROUBLESHOOTING

Never ship back a red dot sight riflescope without getting the proper authorization beforehand. Doing so could result in losing the red dot sight due to a multitude of reasons, i.e. sending it to the wrong address and other problems associated with unexpected packages.

1. Check the firearms' mount that is securely attached. Also, verify the red dot is mounted securely to the rifle. If there is any shifting, retighten the mounting system according to the mounting instructions but do not over tighten.

2. When test firing a rifle to check the point of impact relative to windage and elevation adjustments, firing from a shooting rest will help eliminate shifting during firing. 3. Be sure to use factory-loaded ammunition of the same bullet type, weight, and preferably, lot number when sighting in the red dot sight.

INSTALLING THE BATTERY

The Erains Tactical Close Combat 2x42 Red Dot Sight Riflescope is powered by one CR2032. Should the reticle grow dim or not illuminate, the battery needs to be replaced. To install a new battery:

1. Unscrew the battery cap (4) counter clockwise and remove the battery.

2. Insert new battery with the positive (+) side facing up.

3. Screw the battery cap clockwise. Do not overtighten.

OPERATING THE ON/OFF SWITCH

To activate the Red Dot Sight Riflescope:

1. Locate the on/off switch (5) and Rotate the adjustment switch to the desired illumination setting.

2. After use, turn the switch to the off position marked by "0".

Brief Introduction with main tech info of this sight:

Reticle type Dot, chevron reticle type Reticle color Green Reticle brightness settings 0 Magnification 1x Objective Diameter 23mm Eye relief unlimited Field of view (m@100yards) 3.7 inches Parallax setting (yds) 100 yards Click value (1 click=MOA) 1/2″ W/E adjust click value@100yds ±40M.O.A Body material Aluminum Max recoil (G's) 1000 IP rating IP68 - weatherproof Diopter adjustment range -0.75D Mount type weaver/picatinny Power Supply Tritium Power Tube Tritium Power Lifetime More than 8 years Operating temperature 0-120ºF Color Matte Black Surface treatment Rosting Oxidized surface treatment Length 4 inches Weight 12.3 oz

Our Service
Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.
Warranty: 1 Year free warranty with up to 2-3 years limited warranty for this model designator.
