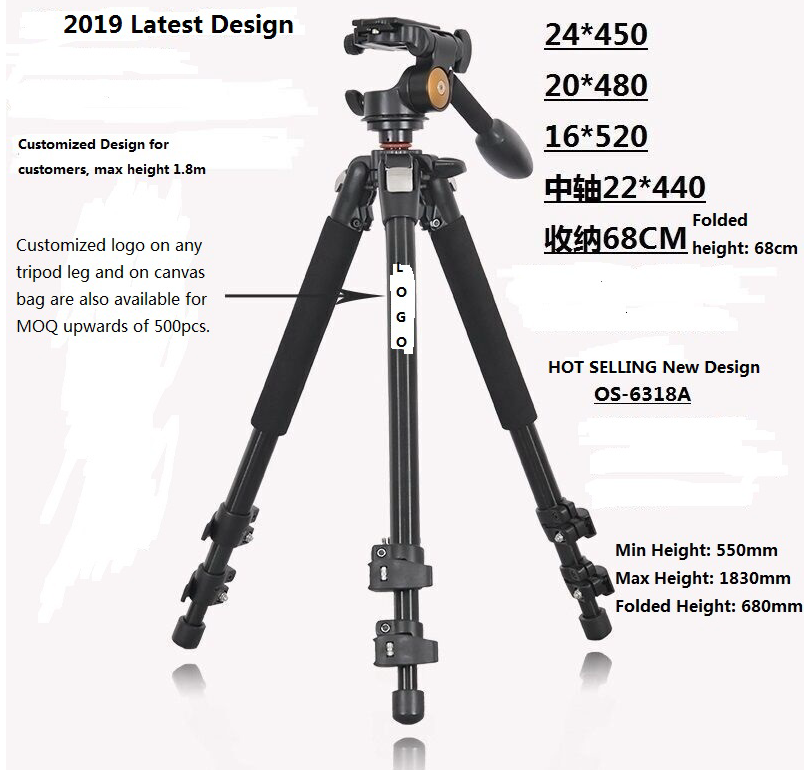

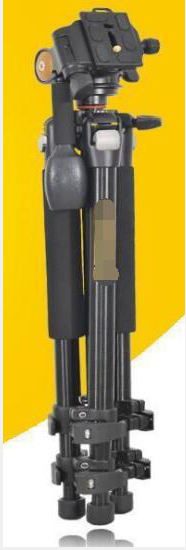

Model: ES-OS-6318A
Short Description/comments: Advanced level professional Photography Camera Tripod

TECHNICAL SPECIFICATIONS
Finish: Oxidized treatment
Material: Aluminum Alloy
Max. Height with extended center column (mm): 1840
Max. Height (mm): 1350
Min. Height (mm): 650
Closed length (mm): 660
Leg sections: 3 legs
Max. Load capacity (kgs): 5.0
Head mount type: /
Tube diameter (mm): 24
Weight (kgs): 2.110

QUICK RELEASE PLATE
Quick release plate supplied (yes/no): Yes with one plate

Max. load capacity (kgs): 4

Head height (mm): 107
Weight (kgs): 0.538
Hook supplied (yes/no): /

PACKING SIZE
Master carton quantity: 6 PCS
Master carton size (cm): 39*27*72
Individual unit box size (cm): 12.5*13*68.50

PRODUCTION AND WARRANTY

Max. Monthly production: 5000PCS
Warranty terms: 2 years
MOQ: 200 PCS
Lead time: 20 days

Manufacturer's Part Number (MPN)					ES-OS-6318A (NEW)	ES-OS-5310 (NEW)	ES-OS-6902
Brand Name					OEM	OEM	OEM
Category Name					Photography, professional tripod	Photography, professional tripod	Photography, professional tripod
Short Description / Comments					Advanced level professional tripod	Advanced level professional tripod	Mid level professional tripod
TECHNICAL SPECIFICATIONS
Finish					Oxidized treatment	Oxidized treatment	Oxidation and milling
Material					Aluminium Alloy	Aluminium Alloy	Aluminium Alloy
Max. height with extended center column (mm)					1840mm	1543mm	1560
Max. height (mm)					1350mm	1220mm	1300
Min. height (mm)					650mm	550mm	480
Closed length (mm)					660mm	550mm	640
Leg sections					3	5	3 legs
Max. load capacity (kgs)					5.0kg	5.0kg	4
Head mount type					/	Q20	02H
Tube diameter (mm)					24	24	24
Weight (kgs)					2110g	1630g	1.962
QUICK RELEASE PLATE
Max. load capacity (kgs)					4	8	4
Head height (mm)					107	107	100
Quick release plate supplied (yes/no)					Yes	Yes	Yes
Weight (kgs)					0.538	0.538	0.47
PACKAGE DETAILS
Master carton quantity (pcs)					6	6	6
Master carton size (cm)					39*27*72	39*27*72	W26*H35*L68
Master carton weight (kgs)							0.77
Individual unit box size (cm)					12.5*13*68.5	12.5*13*68.5	H11*W11*L64
Individual unit box weight (kgs)							0.25
