Model: ES-OS-Q160S
Short Description/comments: Mid level professional Photography Camera tripod

TECHNICAL SPECIFICATIONS
Finish: Oxidized treatment
Material: Aluminum Alloy
Max. Height with extended center column (mm): 1340
Max. Height (mm): 1193
Min. Height (mm): 443
Closed length (mm): 473
Leg sections: 4legs
Max. Load capacity (kgs): 2
Head mount type: 011H
Tube diameter (mm): 20
Weight (kgs): 0.90

QUICK RELEASE PLATE: Supplied

Quick release plate supplied (yes/no): Yes with one plate
Weight (kgs): /
Hook supplied (yes/no): Yes

PACKING SIZE
Master carton quantity: 8 PCS
Master carton size (cm): 46*24*67
Individual unit box size (cm): 11*11.5*63.5

PRODUCTION AND WARRANTY

Max. Monthly production: 5000PCS
Warranty terms: 2 years
MOQ: 200 PCS

Lead Time: 20days

Manufacturer's Part Number (MPN)						ES-OS-5310 (NEW)	ES-OS-6902	ES-OS-Q160S (New)
Brand Name						OEM	OEM	OEM
Category Name						Photography, professional tripod	Photography, professional tripod	Photography, professional tripod
Short Description / Comments						Advanced level professional tripod	Mid level professional tripod	Mid level professional tripod
TECHNICAL SPECIFICATIONS
Finish						Oxidized treatment	Oxidation and milling	Oxidized treatment
Material						Aluminium Alloy	Aluminium Alloy	Aluminium Alloy
Max. height with extended center column (mm)						1543mm	1560	1340
Max. height (mm)						1220mm	1300	1193
Min. height (mm)						550mm	480	443
Closed length (mm)						550mm	640	473
Leg sections						5	3 legs	4
Max. load capacity (kgs)						5.0kg	4	2
Head mount type						Q20	02H	011H
Tube diameter (mm)						24	24	20
Weight (kgs)						1630g	1.962	0.9
QUICK RELEASE PLATE
Max. load capacity (kgs)						8	4
Head height (mm)						107	100
Quick release plate supplied (yes/no)						Yes	Yes	Yes
Weight (kgs)						0.538	0.47
PACKAGE DETAILS
Master carton quantity (pcs)						6	6	8
Master carton size (cm)						39*27*72	W26*H35*L68	46*24*67
Master carton weight (kgs)							0.77
Individual unit box size (cm)						12.5*13*68.5	H11*W11*L64	11*11.5*63.5
Individual unit box weight (kgs)							0.25

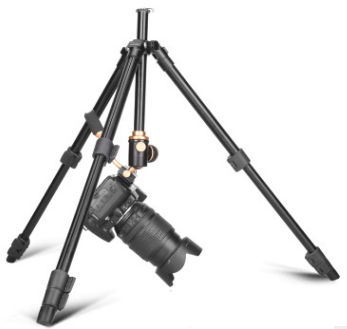

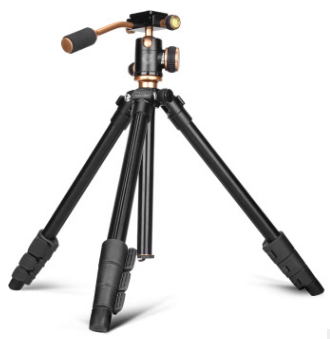

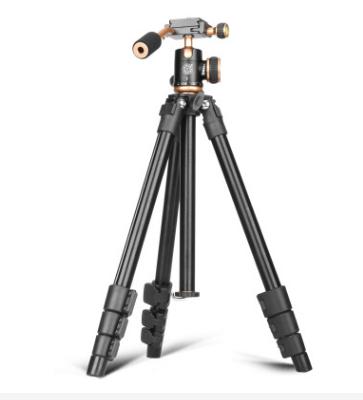

The wonderful Golden Anodized Aluminium Alloy Professional Tripod:

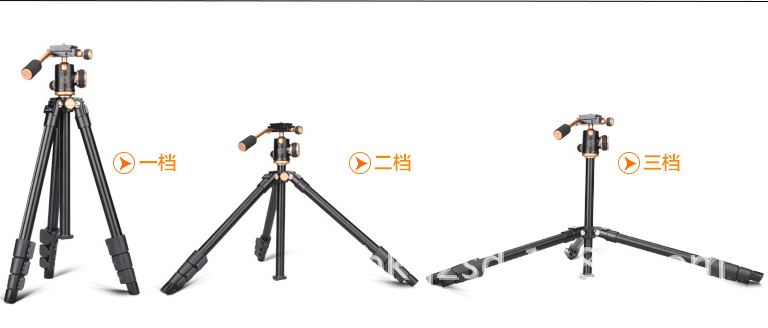

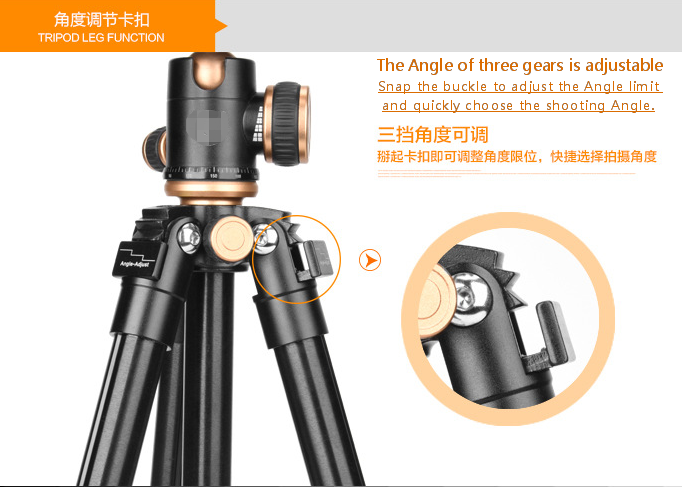

The 3 gear angles of the the Q160S model tripod legs:

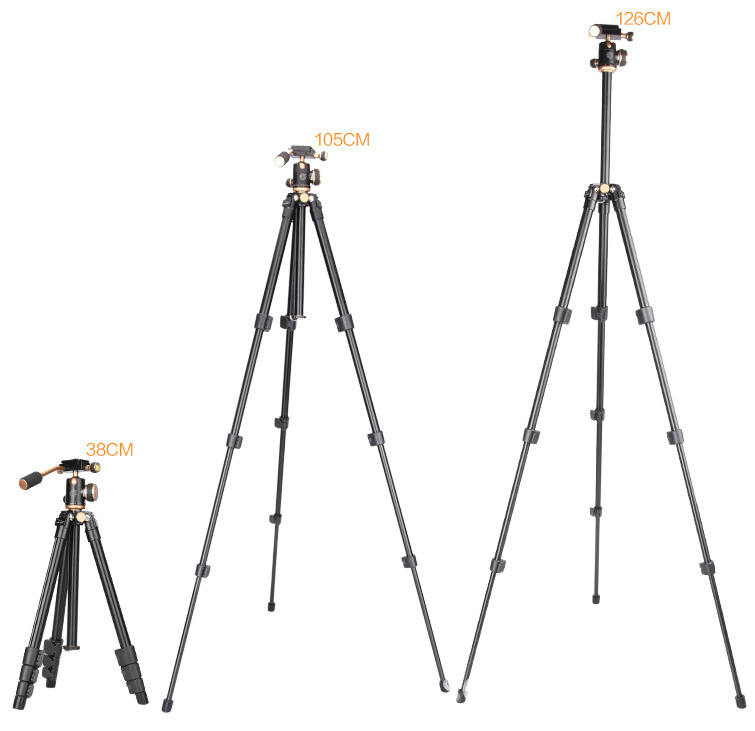

The 3 heights of the Q160S model tripod legs:

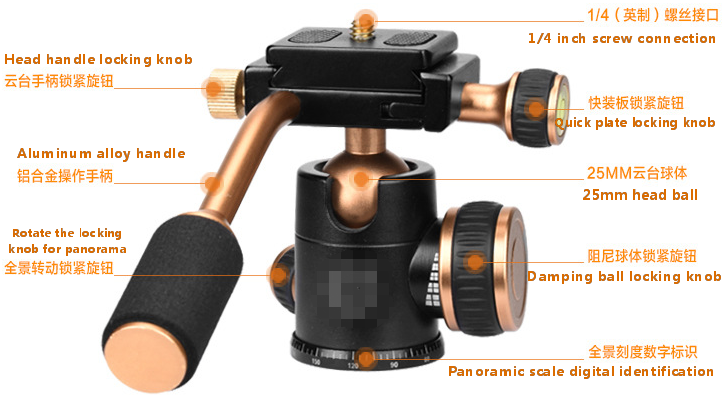

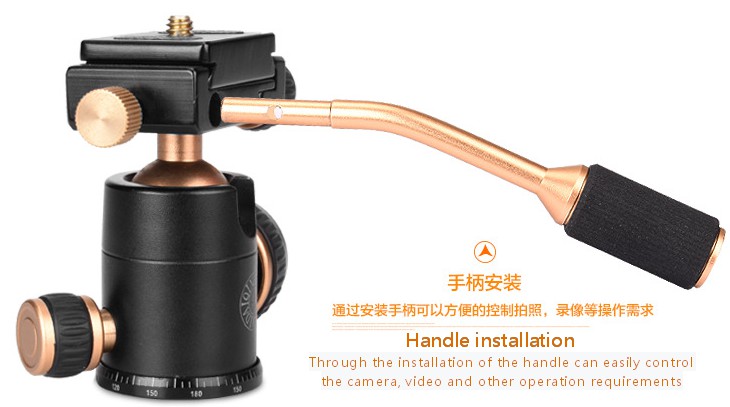

Detailed Instruction of the ES-OS-Q160S Model Tripod platform:

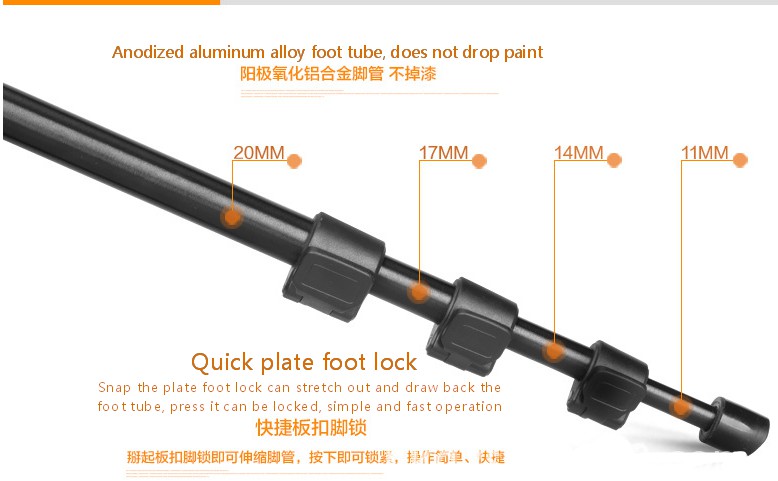

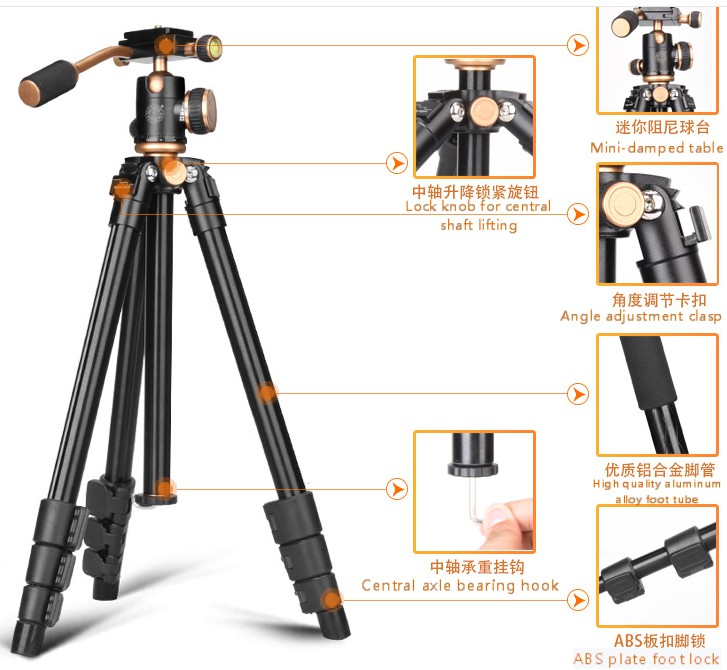

Detailed Instruction of the ES-OS-Q160S Model Tripod legs:

More models would be displayed on Made-In-China Promotion Website soon.
